Brand: CommScope
|
SKU:
359989

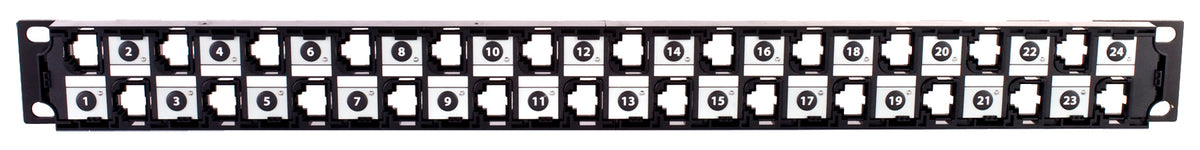

Commscope IP-M4200I-24 | iPatch M4200i 24 Port UTP Intelligent Universal Modular Panel without Modules
Regular price
$422.29
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope IP-M4200I-24 | iPatch M4200i 24 Port UTP Intelligent Univ...
Regular price
$422.29
Unit price
Brand: CommScope
|
SKU:
359989
Regular price
$422.29
Unit price
Description
Description
Commscope IP-M4200I-24 | iPatch M4200i 24 Port UTP Intelligent Universal Modular Panel without Modules
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | iPatch / imVision |
General Specifications
| ANSI/TIA Category | 6 / 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Intelligence Type | iPatch enabled |
| Panel Style | Straight |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
Dimensions
| Height | 44.45 mm / 1.75 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 25.4 mm / 1 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate |
|---|
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ACMA / CE / UL / cUL |
Packaging and Weights
| Included | Cable management bar / Four #12-24 dog point mounting screws / Information outlet removal tool / Instruction sheet / Panel / Two #12 washers / Two #12-24 screws |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 0.68 kg / 1.5 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760073866 Drawing - 2D DWG
- 760073866 Drawing - PDF
- 860 399 674 - iPatch M4200i Intelligent Universal Modular Panel Instructions
- Statement of Compliance RoHS/REACH
- 760073866 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Visio Stencil Resources
