Brand: CommScope
|
SKU:
625657

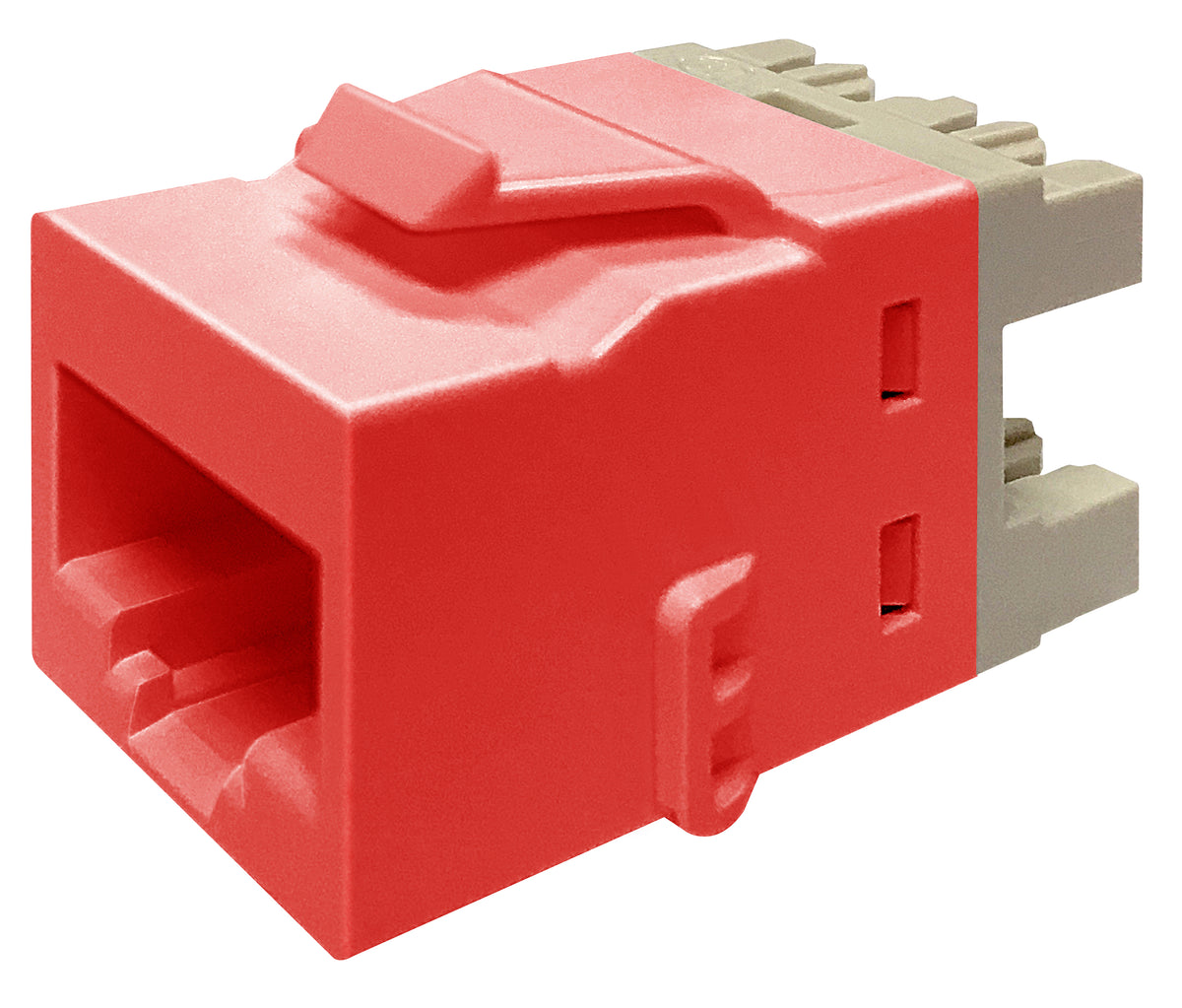

Commscope KJ510 JACK-RED | KJ Series Keystone Modular Jack, 8-position, category 5e, unshielded UTP, red
Regular price
$11.11
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope KJ510 JACK-RED | KJ Series Keystone Modular Jack, 8-posit...
Regular price
$11.11
Unit price
Brand: CommScope
|
SKU:
625657
Regular price
$11.11
Unit price
Description
Description
Commscope KJ510 JACK-RED | KJ Series Keystone Modular Jack, 8-position, category 5e, unshielded UTP, red
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular jack |
| Product Series | KJ Series |
General Specifications
| ANSI/TIA Category | 5e |
|---|---|
| Cable Type | Unshielded |
| Color | Red |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Mounting | Hubbell faceplates / Leviton faceplates / Panduit faceplates |
| Mounting Note | Color matches with KJ-style Red Faceplates |
| Outlet Type | Keystone |
| Termination Tool | 110 Punchdown tool / SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 / ISO/IEC 11801 Class D |
| Wiring | T568A / T568B |
Dimensions
| Panel Cutout, recommended | 14.79 x 19.31 mm (0.58 x 0.76 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
| Height | 16.13 mm / 0.635 in |
| Width | 16.48 mm / 0.649 in |
| Depth | 30.48 mm / 1.2 in |
| Compatible Insulated Conductor Diameter, maximum | 1.27 mm / 0.05 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 24–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Electrical Specifications
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|---|
Material Specifications
| Contact Base Material | Beryllium copper |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Polycarbonate |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
|---|
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 2291217 KJ610 Modular Plug Kit, Category 5e
- 408-8417 SL, Secure SL, E, KJ and M Series Modular Jacks
- 2291217-7 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Use of CommScope cabling for PoE applications
- Visio Stencil Resources
- CommScope Extended System Warranty
