Brand: CommScope
|
SKU:
MM4-COMC6U-04-PK

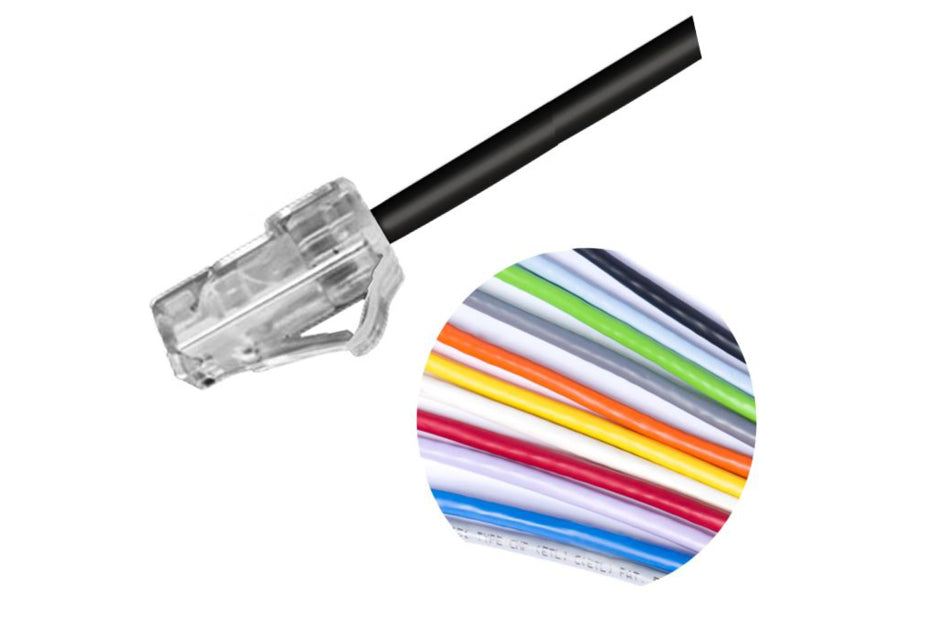

CommScope KO166S2-04F004 | MiNo6 Series Category 6 Performance U/UTP Reduced Diameter LS-CM Dual Rated Patch Cord Pack of 100
Regular price
$1,667.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope KO166S2-04F004 | MiNo6 Series Category 6 Performance U/UT...
Regular price
$1,667.33
Unit price
Brand: CommScope
|
SKU:
MM4-COMC6U-04-PK
Regular price
$1,667.33
Unit price
Shipping calculated at checkout.
Description
Description
CommScope KO166S2-04F004 | MiNo6 Series Category 6 Performance U/UTP Reduced Diameter LS-CM Dual Rated Patch Cord Pack of 100
CommScope - KO166S2-04F004 - Features
- Perfect for cross connects, workstations or racks with higher-density and/or limited space
- Small diameter unshielded twisted pair patch cords (0.15 inch/3.81 mm) that offers flexibility, durability and reliability
- Unique laminate barrier wrap provides excellent alien cross-talk performance
Specifications
Specifications
CommScope - KO166S2-04F004 - Wiring Diagram
| Click on image to enlarge. |
|---|
CommScope - KO166S2-04F004 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Twisted pair patch cord |
| Product Series | KO |
| Ordering Note | Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices |
| ANSI/TIA Category | 6 (except wire gauge) |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | RJ45 plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | RJ45 plug |
| Interface Feature, connector B | Standard |
| Jacket Color | Black | Blue | Dark gray | Light blue | Orange | Purple | Red | Spring green | Violet | White | Yellow |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
| Cable Assembly Length Range (m) | 1 – 5 |
| Cable Assembly Length Range (ft) | 1 – 15 |
| Cable Assembly Length Range (cm) | 15 – 500 |
| Cable Assembly Length Range (in) | 6 – 84 |
| Diameter Over Jacket | 3.84 mm | 0.151 in |
| Compatible Conductor Gauge, solid | 28 AWG |
| dc Resistance, maximum | 0.3 ohm |
| Safety Voltage Rating | 300 V |
| Contact Plating Material | Precious metals |
| Material Type | Copper alloy | Polycarbonate |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 90 N | 20.233 lbf |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) | Non-plenum |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ETL | cETL |
| Packaging quantity | 100 |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
