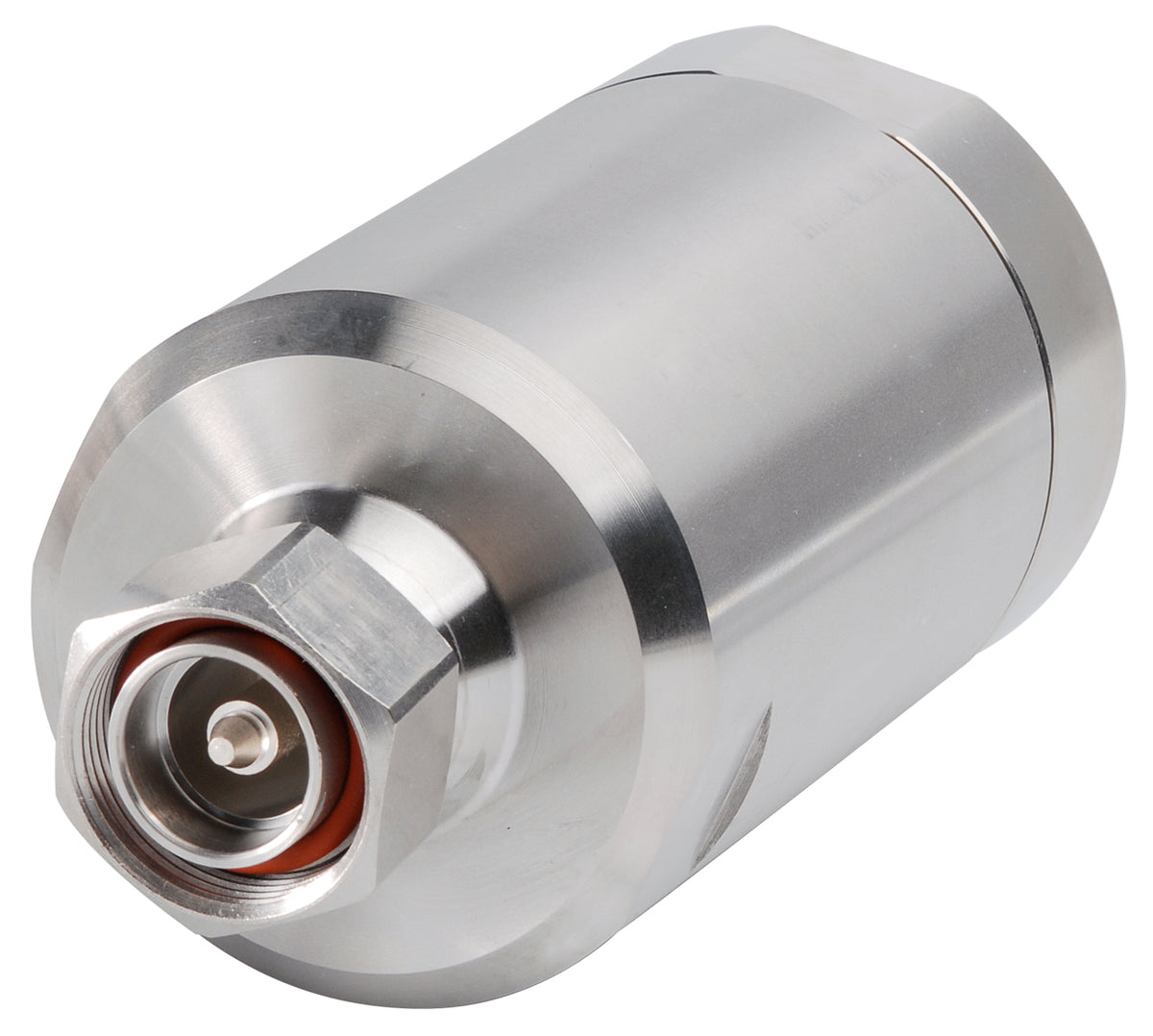

Commscope L12PDM | 7-16 DIN Male for 2-1/4 in LDF12-50 cable
Regular price
$269.68
Unit price
Brand: CommScope
|
SKU:
468676
Regular price
$269.68
Unit price
Description
Description
Commscope L12PDM | 7-16 DIN Male for 2-1/4 in LDF12-50 cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
| Ordering Note | CommScope non-standard product |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | LDF12-50 |
| Inner Contact Attachment Method | Self-tapping |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 147.32 mm / 5.800 in |
|---|---|
| Diameter | 71.12 mm / 2.800 in |
| Nominal Size | 2-1/4 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Average Power at Frequency | 3.0 kW/900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.8 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2200 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 40 kW |
| RF Operating Voltage, maximum (vrms) | 1415 V |
| Shielding Effectiveness | -130 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Coupling Nut Retention Force | 1000.85 N / 225.000 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 1542.24 g / 3.4 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
