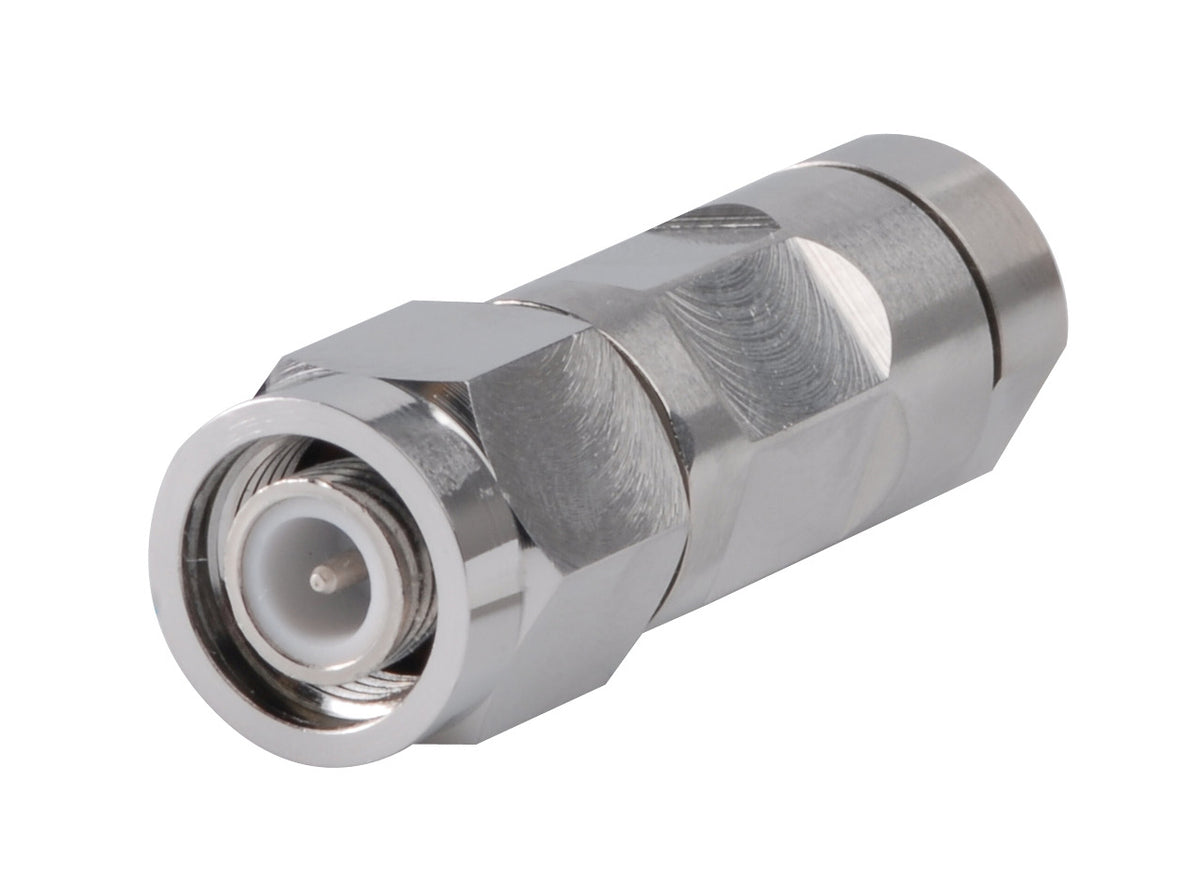

Commscope L1PTM | TNC Male for 1/4 in LDF1-50 cable
Regular price
$43.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L1PTM | TNC Male for 1/4 in LDF1-50 cable
Regular price
$43.25
Unit price
Description
Description
TNC Male for 1/4 in LDF1-50 cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | LDF1-50 |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Silver |
| Interface | TNC Male |
| Mounting Angle | Straight |
Dimensions
| Length | 43.94 mm | 1.730 in |
|---|---|
| Diameter | 16.51 mm | 0.650 in |
| Nominal Size | 1/4 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
| Shielding Effectiveness | -110 dB |
Mechanical Specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
|---|---|
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force | 445 N | 100.040 lbf |
| Coupling Nut Retention Force Method | IEC 61169-16:9.3.11 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
