Brand: CommScope
|
SKU:
468698

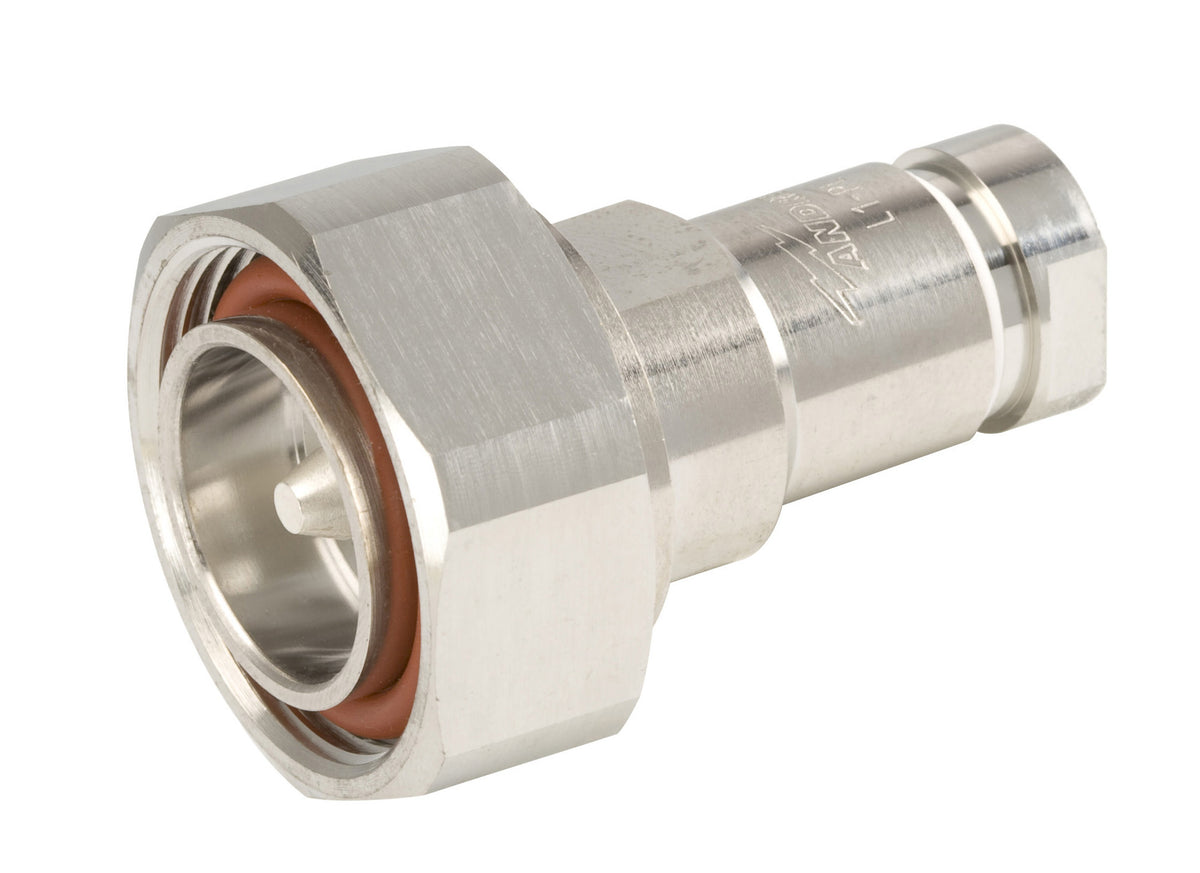

Commscope L1TDM-PL | 7-16 DIN Male Positive Lock for 1/4 in LDF1-50 cable
Regular price
$44.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

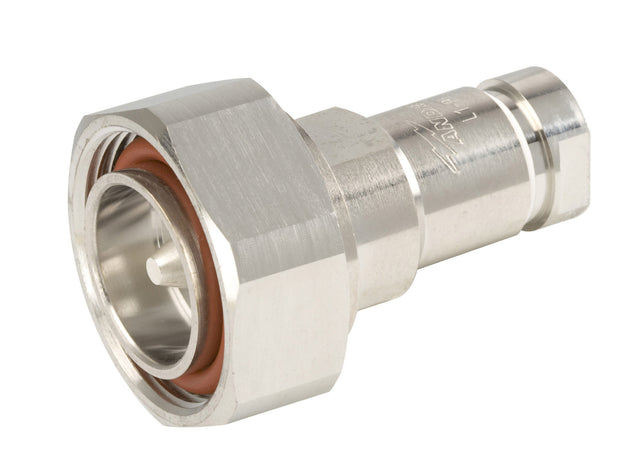

Commscope L1TDM-PL | 7-16 DIN Male Positive Lock for 1/4 in LDF1-50...
Regular price
$44.88
Unit price
Description
Description
Commscope L1TDM-PL | 7-16 DIN Male Positive Lock for 1/4 in LDF1-50 cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | LDF1-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 34.54 mm / 1.360 in |
|---|---|
| Width | 34.54 mm / 1.360 in |
| Length | 45.97 mm / 1.810 in |
| Diameter | 34.54 mm / 1.360 in |
| Nominal Size | 1/4 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2200 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 8000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 12.1 kW |
| RF Operating Voltage, maximum (vrms) | 778 V |
| Shielding Effectiveness | -110 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 449.27 N / 101.000 lbf |
| Coupling Nut Proof Torque | 35 N-m / 309.776 in lb |
| Coupling Nut Retention Force | 1000 N / 224.810 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Insertion Force | 199.99 N / 44.960 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 109.66 g / 0.242 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
