Brand: CommScope
|
SKU:
L2TTM-PL

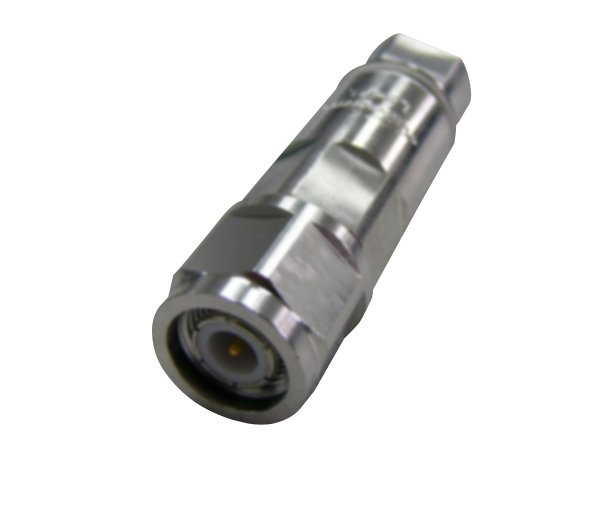

Commscope L2TTM-PL | TNC Male Positive Lock for 3/8 in LDF2-50 cable
Regular price
$22.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L2TTM-PL | TNC Male Positive Lock for 3/8 in LDF2-50 cable
Regular price
$22.48
Unit price
Description
Description
TNC Male Positive Lock for 3/8 in LDF2-50 cable
Specifications
Specifications
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | LDF2-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Gold |
| Interface | TNC Male |
| Mounting Angle | Straight |
Dimensions
| Height | 16.51 mm | 0.650 in |
|---|---|
| Width | 16.51 mm | 0.650 in |
| Length | 53.85 mm | 2.120 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
|---|---|
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 0.7 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 10000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
| Shielding Effectiveness | -110 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 671.68 N | 151.000 lbf |
| Connector Retention Torque | 2.7 N-m | 23.897 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Retention Force | 445 N | 100.040 lbf |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
