Brand: CommScope
|
SKU:
468802

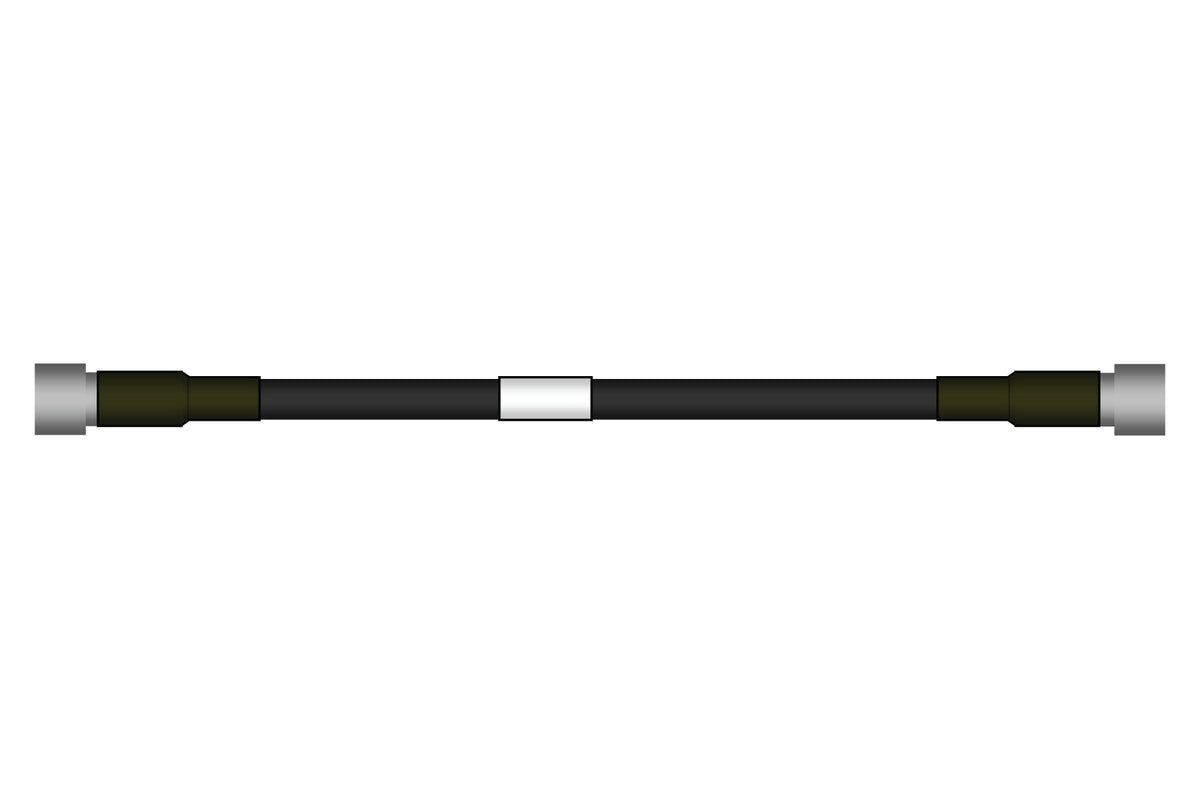

CommScope L4A-NMDM-2M-P | LDF4-50A SureFlex Jumper with interface types N Male and 7-16 DIN Male, 2 m
Regular price
$103.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope L4A-NMDM-2M-P | LDF4-50A SureFlex Jumper with interface t...
Regular price
$103.12
Unit price
Description
Description
CommScope L4A-NMDM-2M-P | LDF4-50A SureFlex Jumper with interface types N Male and 7-16 DIN Male, 2 m
Specifications
Specifications
CommScope - L4A-NMDM-2M-P - Product Categories
- Cable Assemblies
- Wireless Cable Assemblies
- Coaxial Cable Assemblies
CommScope - L4A-NMDM-2M-P - Product Classification
| Product Type | SureFlexPremium, static PIM |
|---|---|
| Product Brand | HELIAX| SureFlex |
| Product Series | LDF4-50A |
CommScope - L4A-NMDM-2M-P - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | LDF4-50A SureFlex Jumper with interface types N Male and 7-16 DIN Male, 2 m |
| Model Number | L4A-NMDM-2M-P |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | N Male |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | B |
CommScope - L4A-NMDM-2M-P - Additional Information
| Dimensions | - |
|---|---|
| Length | 2 m | 6.562 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/2 in |
| Electrical Specifications | - |
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 698–960 MHz |
| Environmental Specifications | - |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
