Brand: CommScope
|
SKU:
539556

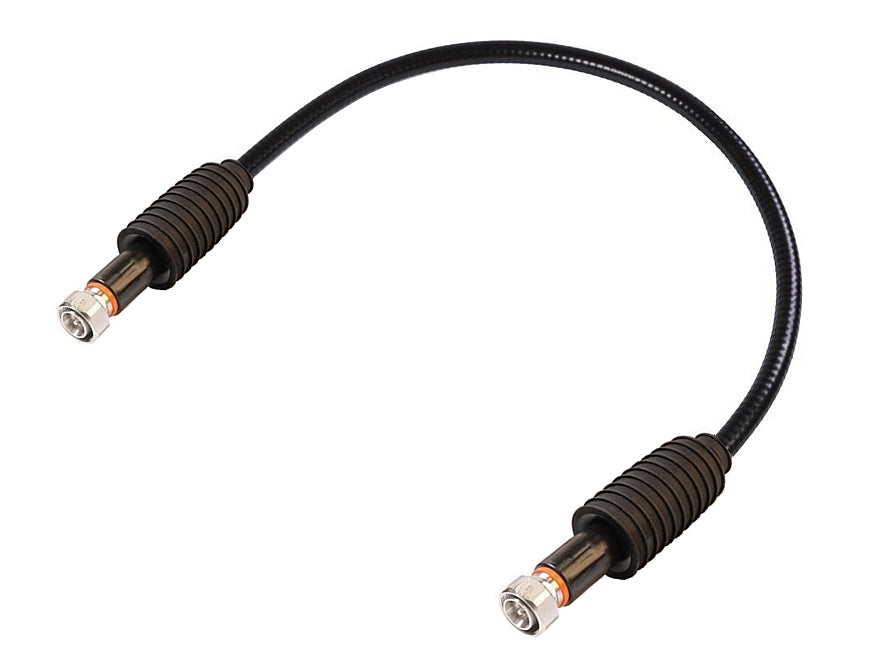

Commscope L4ADMDM4PSGW | LDF4-50A SureFlex Jumper with interface types 7-16 DIN Male and 7-16 DIN Male with HELIAX SureGuard weatherproofing, 4 ft
Regular price
$45.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L4ADMDM4PSGW | LDF4-50A SureFlex Jumper with interface ty...
Regular price
$45.83
Unit price
Description
Description
Commscope L4ADMDM4PSGW | LDF4-50A SureFlex Jumper with interface types 7-16 DIN Male and 7-16 DIN Male with HELIAX SureGuard weatherproofing, 4 ft
Features and Benefits
- If there are threads along the entire device port length, the HELIAX SureGuard weatherproofing solutions will only seal properly if the HSG-M29-ADPT adapter is installed on the device port
Specifications
Specifications
Jumper Assembly Sample Label
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | SureFlex Premium, static PIM |
|---|---|
| Product Series | LDF4-50A |
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Body Style, Connector A | Straight |
|---|---|
| Body Style, Connector B | Straight |
| Interface, Connector A | 7-16 DIN Male |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 1.219 m / 3.999 ft |
|---|---|
| Nominal Size | 1/2 in |
Electrical Specifications
| 3rd Order IMD Static | -116 dBm |
|---|---|
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Environmental Specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
|---|---|
| Weatherproofing Method | HELIAX SureGuard weatherproofing boot |
Packaging and Weights
| Included | Weatherproofing boot |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 7617394 Installation of HELIAX Jumper Products
- Installation Instructons: HELIAX SureGuard Version 2.0 Weatherproofing System for 1/4" 3/8" and 1/2" SureFlex Jumpers
- Installation of HELIAX Jumper Products
- L4A-DMDM-4-P-SGW Product specifications
- L4A-DMDM-4-P-SGW Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
