Brand: CommScope
|
SKU:
468990

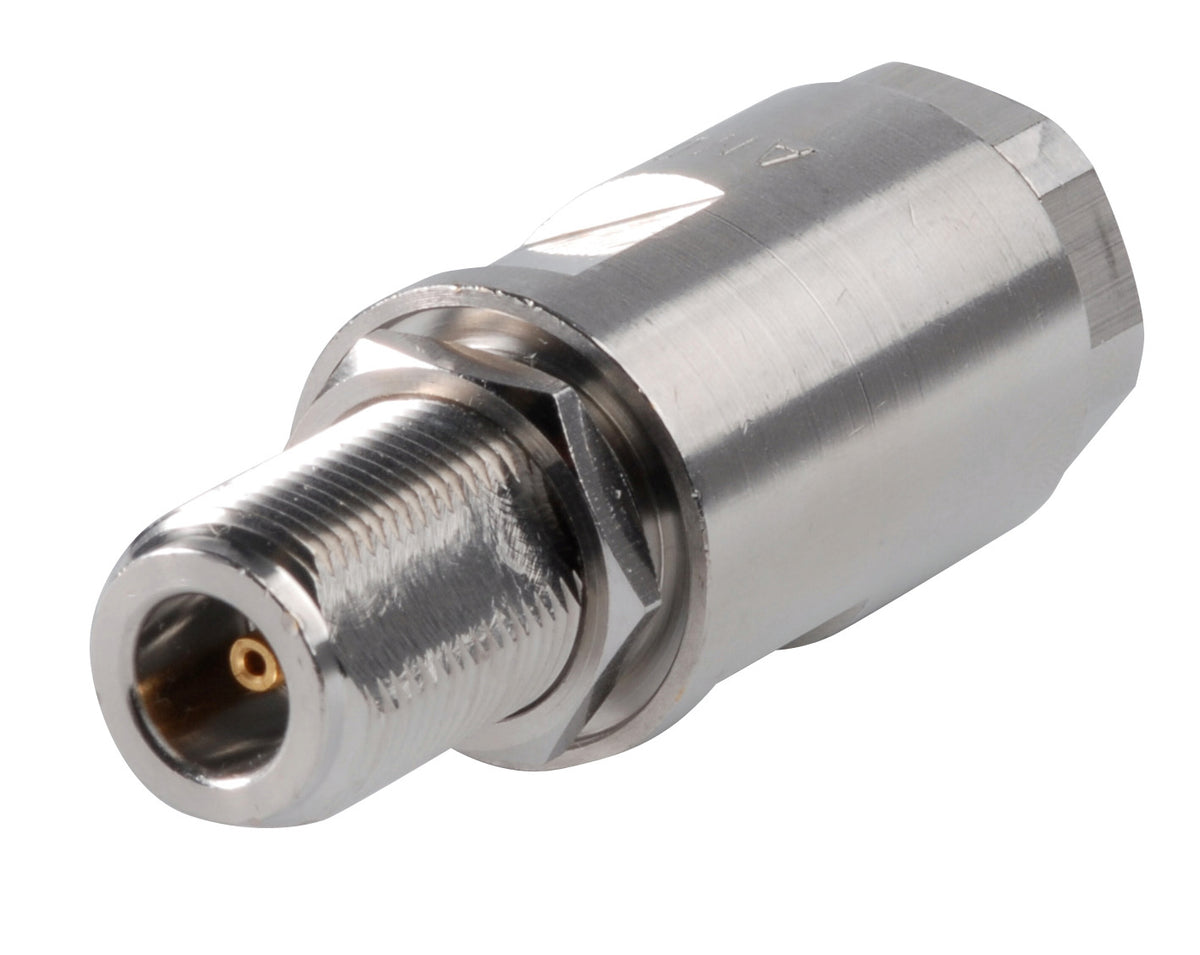

Commscope L4PNF-BH | Type N Female Bulkhead for 1/2 in LDF4-50A cable
Regular price
$45.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L4PNF-BH | Type N Female Bulkhead for 1/2 in LDF4-50A cable
Regular price
$45.46
Unit price
Description
Description
Commscope L4PNF-BH | Type N Female Bulkhead for 1/2 in LDF4-50A cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | LDF4-50A |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 66.04 mm / 2.600 in |
|---|---|
| Diameter | 25.4 mm / 1.000 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Average Power at Frequency | 0.6 kW/900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Shielding Effectiveness | -110 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 889.64 N / 200.000 lbf |
| Connector Retention Torque | 5.42 N-m / 47.998 in lb |
| Insertion Force | 66.72 N / 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 145 g / 0.32 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
