Brand: CommScope
|
SKU:
518767

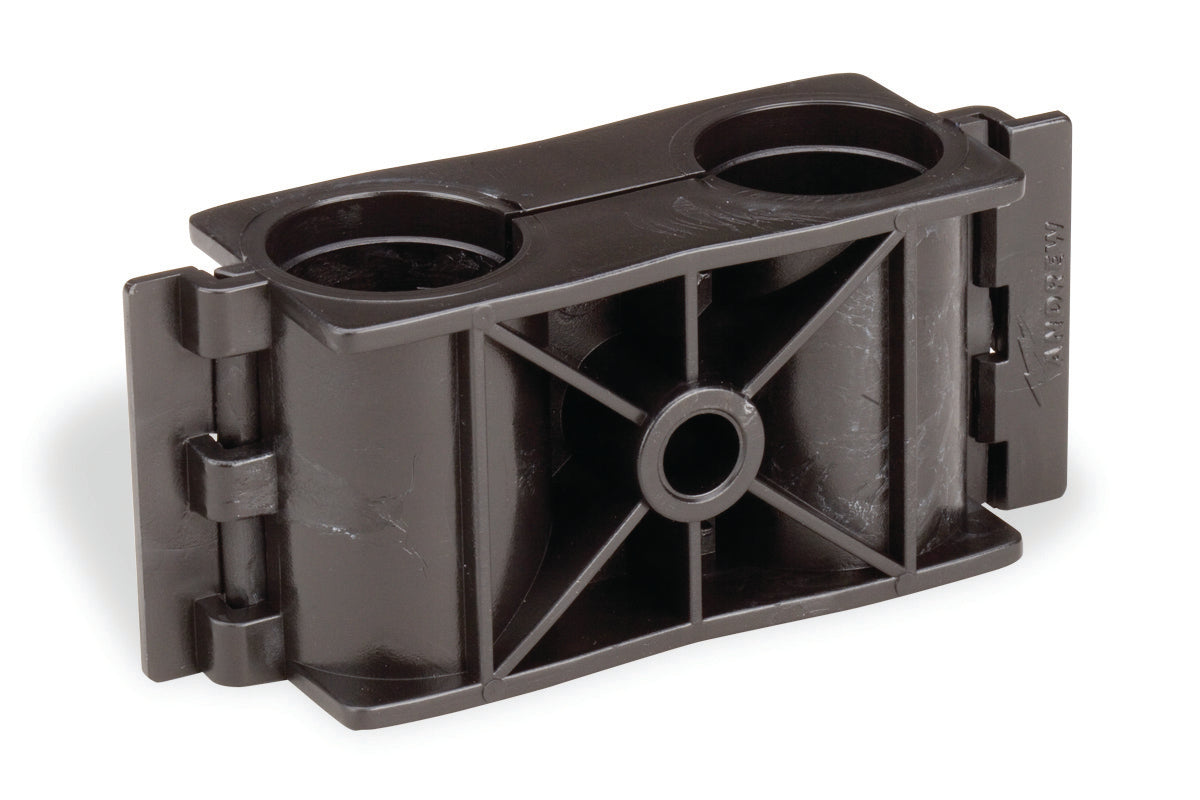

Commscope L6CLICK | Double Click-on Hanger for 1-1/4 in coaxial cable
Regular price
$42.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope L6CLICK | Double Click-on Hanger for 1-1/4 in coaxial cable
Regular price
$42.19
Unit price
Description
Description
Commscope L6CLICK | Double Click-on Hanger for 1-1/4 in coaxial cable
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Cables per Hanger | 2 |
|---|---|
| Color | Black |
| Hanger Type | Click-on hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Height | 51.054 mm / 2.01 in |
|---|---|
| Maximum Stack Height | 3 |
| Width | 70.104 mm / 2.76 in |
| Length | 133.096 mm / 5.24 in |
| Compatible Diameter, maximum | 40.132 mm / 1.58 in |
| Compatible Diameter, minimum | 38.1 mm / 1.5 in |
| Nominal Size | 1-1/4 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ?100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 37.7 cm / 14.843 in |
|---|---|
| Width, packed | 13.9 cm / 5.472 in |
| Length, packed | 15 cm / 5.906 in |
| Packaging quantity | 10 |
| Weight, gross | 1.34 kg / 2.954 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Click-On Hangers for HELIAX Coaxial Cables
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- L6CLICK Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 7719798 HELIAX Coaxial and Elliptical Waveguide Hanger Spacing Guidelines
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- CommScope Limited Product Warranty
