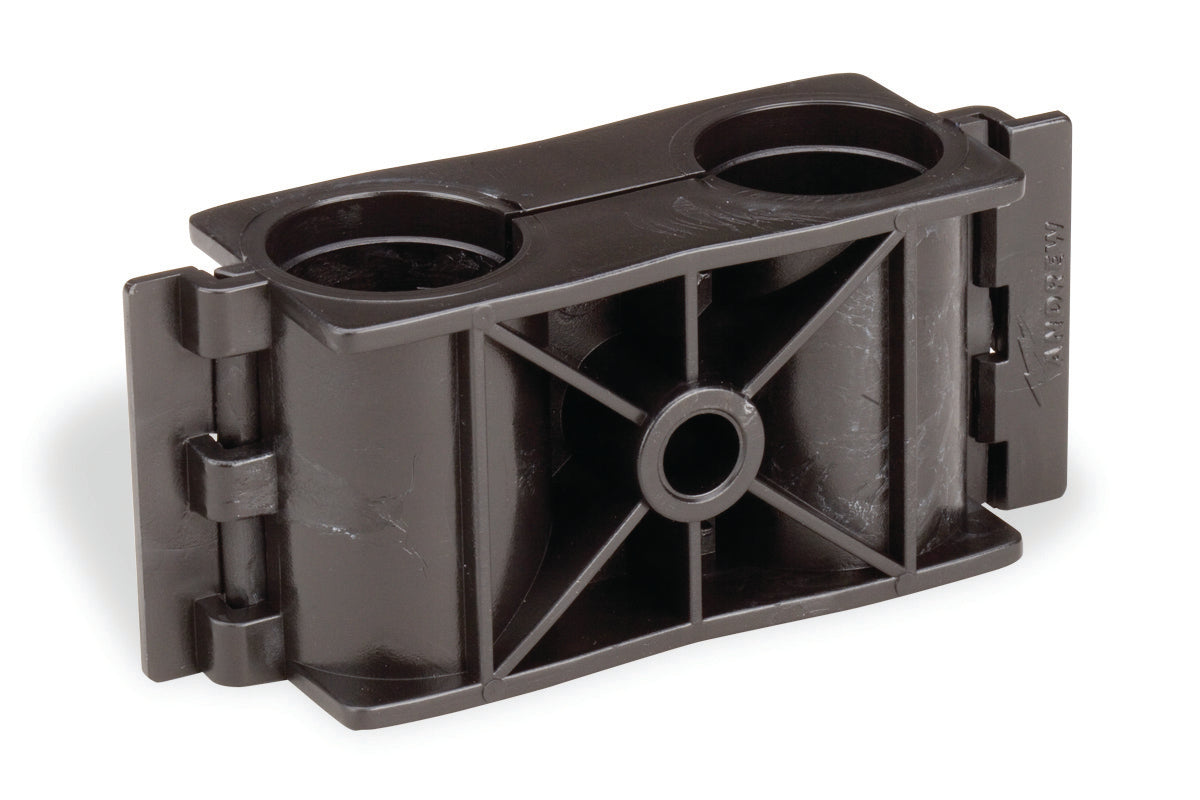

Commscope L7CLICK | Double Click-on Hanger for 1-5/8 in coaxial cable
Regular price
$28.72
Unit price
Brand: CommScope
|
SKU:
518768
Regular price
$28.72
Unit price
Description
Description
Commscope L7CLICK | Double Click-on Hanger for 1-5/8 in coaxial cable
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Ordering Note | CommScope standard product in the United States and Canada |
General Specifications
| Cables per Hanger | 1 |
|---|---|
| Color | Black |
| Hanger Type | Click-on hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Height | 51.054 mm / 2.01 in |
|---|---|
| Maximum Stack Height | 3 |
| Width | 79.502 mm / 3.13 in |
| Length | 154.686 mm / 6.09 in |
| Compatible Diameter, maximum | 50.8 mm / 2 in |
| Compatible Diameter, minimum | 49.022 mm / 1.93 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Engineered plastic |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Environmental Strength Capability | Double cable weight |
| UV Resistance, minimum with no degradation | ?100 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 12.9 cm / 5.079 in |
|---|---|
| Width, packed | 5.5 cm / 2.165 in |
| Length, packed | 5.9 cm / 2.323 in |
| Packaging quantity | 10 |
| Weight, gross | 1.6 kg / 3.527 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Click-On Hangers for HELIAX Coaxial Cables
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- L7CLICK Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 7719798 HELIAX Coaxial and Elliptical Waveguide Hanger Spacing Guidelines
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- CommScope Limited Product Warranty
