Brand: CommScope
|
SKU:
518771

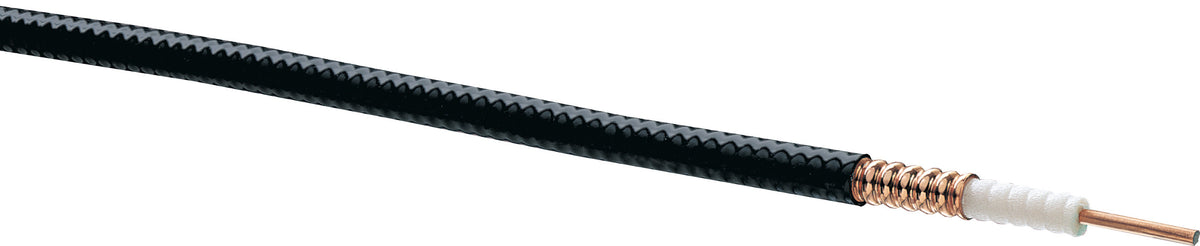

Commscope LDF2RK-50 | LDF2-50, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 3/8 in, black non-halogenated, fire retardant polyolefin jacket, B2ca s1a dO a1 Compliant
Regular price
$3.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope LDF2RK-50 | LDF2-50, HELIAX Low Density Foam Coaxial Cabl...
Regular price
$3.37
Unit price
Description
Description
Commscope LDF2RK-50 | LDF2-50, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 3/8 in, black non-halogenated, fire retardant polyolefin jacket, B2ca s1a dO a1 Compliant
Specifications
Specifications
Product Classification
| Product Type | Coaxial wireless cable |
|---|---|
| Product Brand | HELIAX / SureFlex |
| Product Series | LDF2-50 |
General Specifications
| Flexibility | Standard |
|---|---|
| Jacket Color | Black |
Dimensions
| Diameter Over Dielectric | 8.636 mm / 0.34 in |
|---|---|
| Diameter Over Jacket | 11.176 mm / 0.44 in |
| Inner Conductor OD | 3.048 mm / 0.12 in |
| Outer Conductor OD | 9.652 mm / 0.38 in |
| Nominal Size | 3/8 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±1 ohm |
|---|---|
| Capacitance | 75 pF/m / 22.86 pF/ft |
| dc Resistance, Inner Conductor | 3.478 ohms/km / 1.06 ohms/kft |
| dc Resistance, Outer Conductor | 2.854 ohms/km / 0.87 ohms/kft |
| dc Test Voltage | 2500 V |
| Inductance | 0.19 µH/m / 0.058 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 6000 V |
| Operating Frequency Band | 1 – 13000 MHz |
| Peak Power | 16.6 kW |
| Velocity | 0.85 |
Material Specifications
| Dielectric Material | Foam PE |
|---|---|
| Jacket Material | Non-halogenated, fire retardant polyolefin |
| Inner Conductor Material | Copper-clad aluminum wire |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 95.25 mm / 3.75 in |
|---|---|
| Minimum Bend Radius, Single Bend | 40.64 mm / 1.6 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 50 |
| Tensile Strength | 113 kg / 249.122 lb |
| Bending Moment | 1.9 N-m / 16.816 in lb |
| Flat Plate Crush Strength | 2 kg/mm / 111.995 lb/in |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d0 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Fire Retardancy Test Method | IEC 60332-1 / IEC 60332-3C-24 / NFPA 130-2010 / UL 1666/CATVR/CMR / UL 1685 |
| Smoke Index Test Method | IEC 61034 |
| Toxicity Index Test Method | IEC 60754-1 / IEC 60754-2 |
Packaging and Weights
| Cable weight | 0.12 kg/m / 0.081 lb/ft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
