Brand: CommScope
|
SKU:
419944-MT

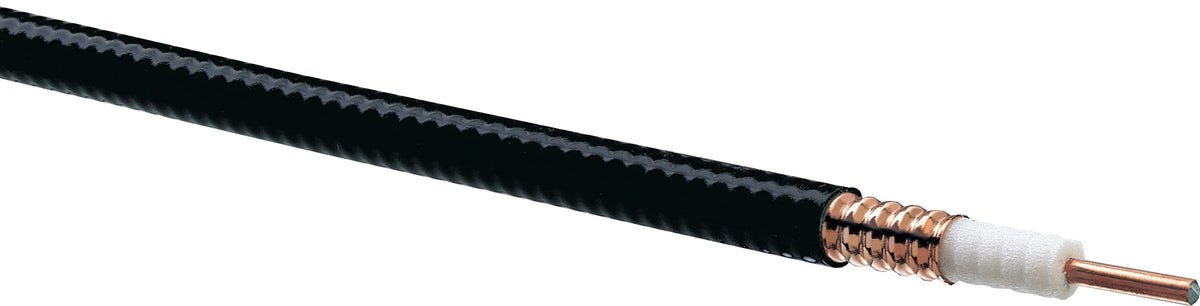

CommScope LDF4-50A | LDF4-50A, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 1/2 in
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope LDF4-50A | LDF4-50A, HELIAX Low Density Foam Coaxial Cabl...
Regular price
$3.03
Unit price
Description
Description
CommScope LDF4-50A | LDF4-50A, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 1/2 in
Specifications
Specifications
CommScope - LDF4-50A - Product Categories
- Cables
- Wireless Transmission Cables
- Wireless Cables
CommScope - LDF4-50A - Product Classification
| Product Type | Coaxial wireless cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | LDF4-50A |
| Ordering Note | CommScopestandard product (Global) |
CommScope - LDF4-50A - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | LDF4-50A, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket Halogen free jacketing non-fire-retardant (General propose cable for outdoor use only) |
| Model Number | LDF4-50A |
| Product Number | 520094002/00 | SZ520094902/00 |
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
CommScope - LDF4-50A - Additional Information
| Dimensions | - |
|---|---|
| Diameter Over Dielectric | 12.954 mm | 0.51 in |
| Diameter Over Jacket | 15.875 mm | 0.625 in |
| Inner Conductor OD | 4.826 mm | 0.19 in |
| Outer Conductor OD | 13.97 mm | 0.55 in |
| Nominal Size | 1/2 in |
| Electrical Specifications | - |
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 75.8 pF/m | 23.104 pF/ft |
| dc Resistance, Inner Conductor | 1.48 ohms/km | 0.451 ohms/kft |
| dc Resistance, Outer Conductor | 2.69 ohms/km | 0.820 ohms/kft |
| dc Test Voltage | 4000 V |
| Inductance | 0.19 µH/m | 0.058 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 8800 MHz |
| Peak Power | 40 kW |
| Velocity | 0.88 |
