Brand: CommScope
|
SKU:
425075

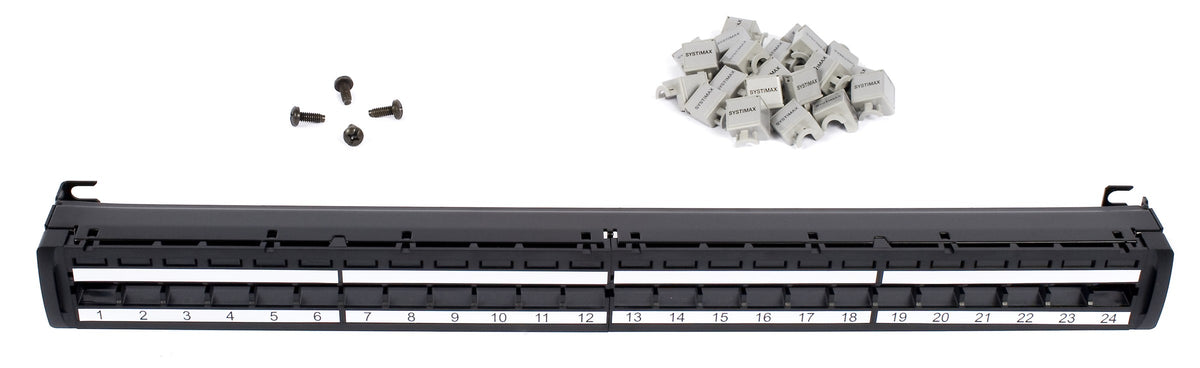

Commscope M2400-1U-GS | GigaSPEED X10D Xpress U/UTP Flat Single-Row Modular Panel, 24 port (MGS400/600)
Regular price
$182.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope M2400-1U-GS | GigaSPEED X10D Xpress U/UTP Flat Single-Row...
Regular price
$182.71
Unit price
Description
Description
Commscope M2400-1U-GS | GigaSPEED X10D Xpress U/UTP Flat Single-Row Modular Panel, 24 port (MGS400/600)
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | RJ45 patch panel |
| Product Brand | GigaSPEED X10D |
General Specifications
| ANSI/TIA Category | 6 / 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Intelligence Type | Passive |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Total Ports, quantity | 24 |
Dimensions
| Height | 43.69 mm / 1.72 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 53.59 mm / 2.11 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm / 0.03 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
