Commscope M4CA-003 | M4CA Type Adjustable Furniture Faceplate, black
Regular price
$12.16
Unit price
Brand: CommScope
|
SKU:
261035
Regular price
$12.16
Unit price
Description
Description

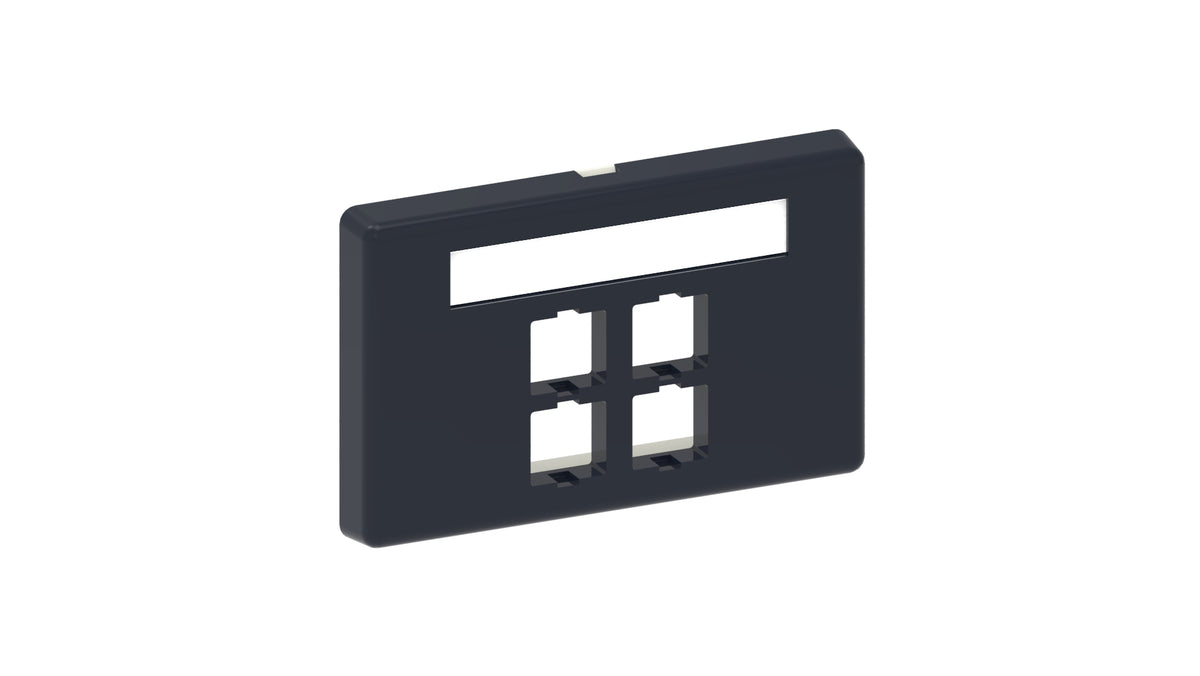

Commscope M4CA-003 | M4CA Type Adjustable Furniture Faceplate, black
Features and Benefits
- Available for use with the DYMO labeling solution
- Modular office furniture manufacturers have used a wide range of panel openings for their data and voice outlets. The M4CA will adjust to fit many of these. It may be mounted on any flat surface with a material thickness of 0.025 in. to 0.125 in. (0.63 mm to 3.18 mm). It may be easily installed in any rectangular opening size ranging from 1. 7 in. high by 2.792 in. wide (4.32 cm x 7.09 cm) to 2.375 in. high by 4.125 in. wide (6.03 cm x 10.48 cm).
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Furniture faceplate |
General Specifications
| Application | For modular furniture applications requiring either fiber or copper connectivity |
|---|---|
| Color | Black |
| Mounting | Flush |
| Total Ports, quantity | 4 |
Dimensions
| Height | 75.692 mm / 2.98 in |
|---|---|
| Width | 120.142 mm / 4.73 in |
| Depth | 12.7 mm / 0.5 in |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
|---|
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
|---|---|
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 0.054 kg / 0.12 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 700189046 Drawing - 2D DWG
- 700189046 Drawing - PDF
- 860 345 875 - Faceplates - Product Information and Installation
- 860 345 875C - Faceplates Instruction Card
- Statement of Compliance RoHS/REACH
- 700189046 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
