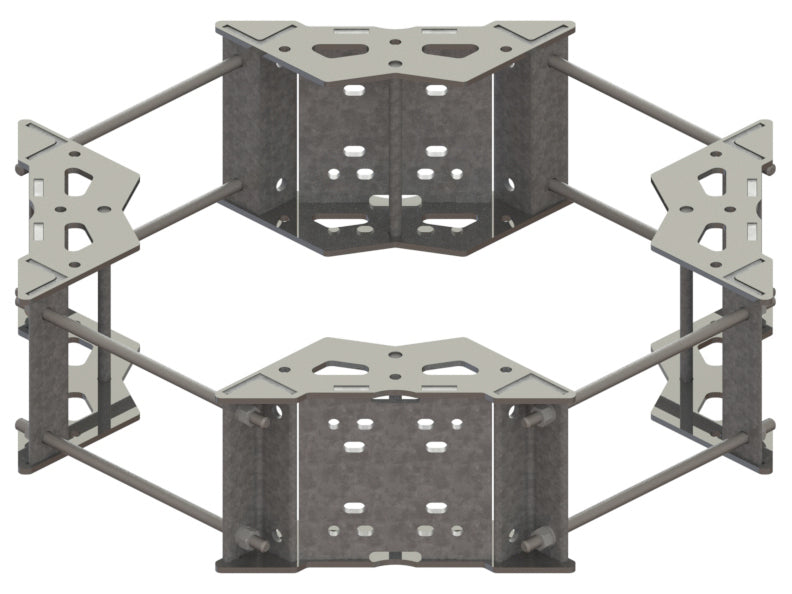

Commscope MC-RM1030-4 | Universal Ring Mount, 10 in to 30 in OD
Regular price
$1,596.86
Unit price
Brand: CommScope
|
SKU:
469177
Regular price
$1,596.86
Unit price
Description
Description
Commscope MC-RM1030-4 | Universal Ring Mount, 10 in to 30 in OD
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Universal ring mount |
|---|
General Specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
|---|---|
| Sectors, quantity | 4 |
Dimensions
| Height | 254 mm / 10 in |
|---|---|
| Width | 457.2 mm / 18 in |
| Length | 152.4 mm / 6 in |
| Mounting Diameter, maximum | 762 mm / 30 in |
| Mounting Diameter, minimum | 254 mm / 10 in |
| Mounting Circumference, maximum | 2392.68 mm / 94.2 in |
| Mounting Circumference, minimum | 797.56 mm / 31.4 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 140 mph (BWS) at 150 ft AGL / 160 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
|---|---|
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Mount / Threaded rod |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 140.704 kg / 310.2 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
