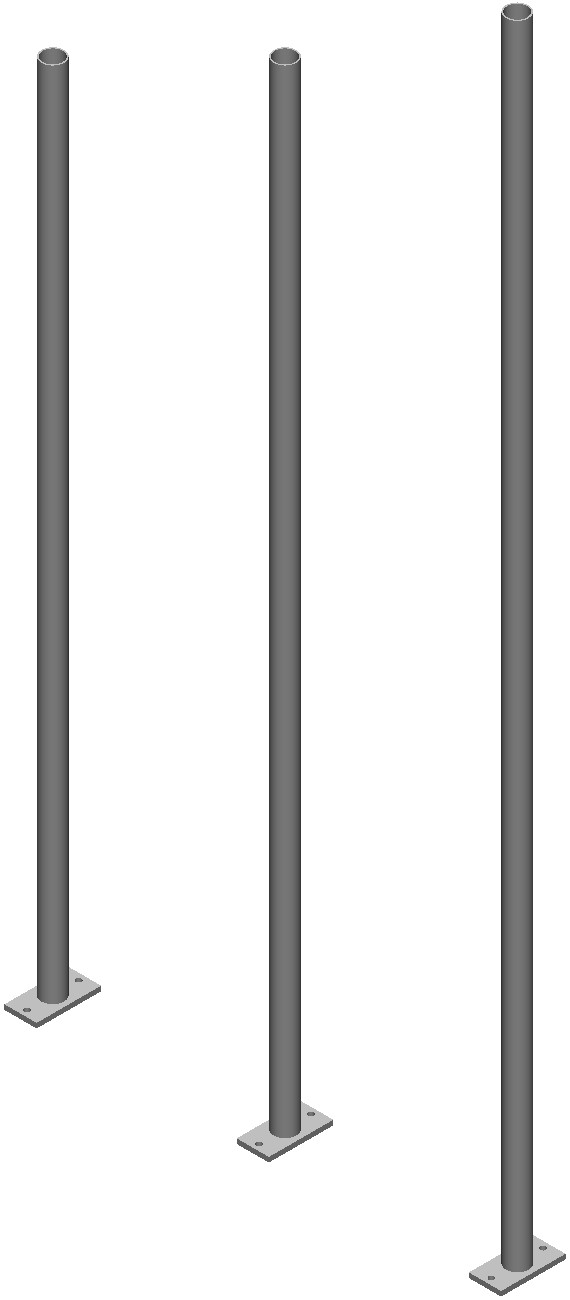

Commscope MF-126 | Base Shoe Pipe Column, 10 ft 6 in
Regular price
$475.78
Unit price
Brand: CommScope
|
SKU:
469186
Regular price
$475.78
Unit price
Description
Description
Commscope MF-126 | Base Shoe Pipe Column, 10 ft 6 in
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Pipe column |
|---|
General Specifications
| Application | Base shoe |
|---|---|
| Mounting | Waveguide bridge support bracket |
| Pipe, quantity | 1 |
Dimensions
| Height | 3200.4 mm / 126 in |
|---|---|
| Width | 127 mm / 5 in |
| Length | 254 mm / 10 in |
| Pipe Length | 3200.4 mm / 126 in |
| Pipe Outer Diameter | 88.9 mm / 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Packaging and Weights
| Included | Anchors / Pipe |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 41.7 kg / 91.933 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
