Brand: CommScope
|
SKU:
9870400

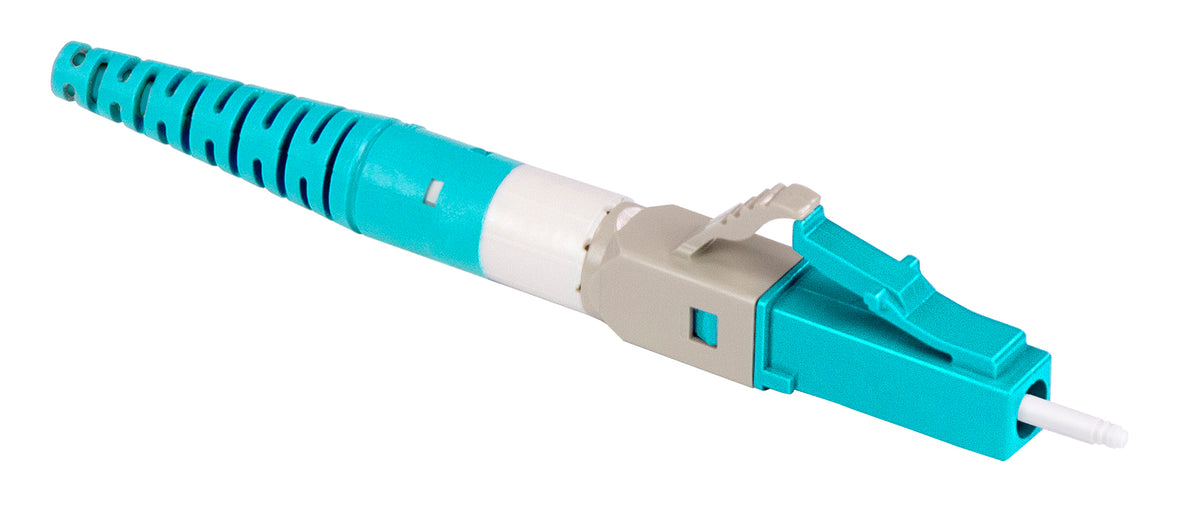

Commscope MFC-LCF-20-5Y-12-PACK | Qwik-Fuse Connector, LC, OM3/OM4/OM5, Aqua, for 1.6/2.0 mm, 12 per pack
Regular price
$247.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope MFC-LCF-20-5Y-12-PACK | Qwik-Fuse Connector, LC, OM3/OM4/...
Regular price
$247.53
Unit price
Description
Description
Commscope MFC-LCF-20-5Y-12-PACK | Qwik-Fuse Connector, LC, OM3/OM4/OM5, Aqua, for 1.6/2.0 mm, 12 per pack
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber connector |
| Product Brand | LazrSPEED / Qwik |
| Product Series | Qwik-Fuse |
General Specifications
| Body Style | Cordage |
|---|---|
| Color, boot | Aqua |
| Color, housing | Aqua |
| Ferrule Geometry | Factory polished |
| Interface | LC |
| Interface Feature | Field Installable / Fusion splice |
Dimensions
| Compatible Cable Diameter | 1.6 mm / 0.063 in / 2 mm / 0.079 in |
|---|
Material Specifications
| Ferrule Material | Zirconia |
|---|
Mechanical Specifications
| Cable Retention Strength, maximum | 5.08 lb |
|---|
Optical Specifications
| Fiber Mode | Multimode |
|---|---|
| Fiber Type | OM3 / OM4 / OM5, LazrSPEED wideband |
| Optical Components Standard | ANSI/TIA-568. 3-D / IEC 61753-1 |
| Insertion Loss, maximum | 0.25 dB |
| Insertion Loss, typical | 0.1 dB |
| Return Loss, minimum | 30 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|
Packaging and Weights
| Packaging quantity | 12 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- TC-977001-IP QWIK-FUSE SPLICE-ON CONNECTOR
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Installation of Qwik-Fuse 2mm LC Connector with Qwik-Fuse Installer
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
