Brand: CommScope | SKU: 266858

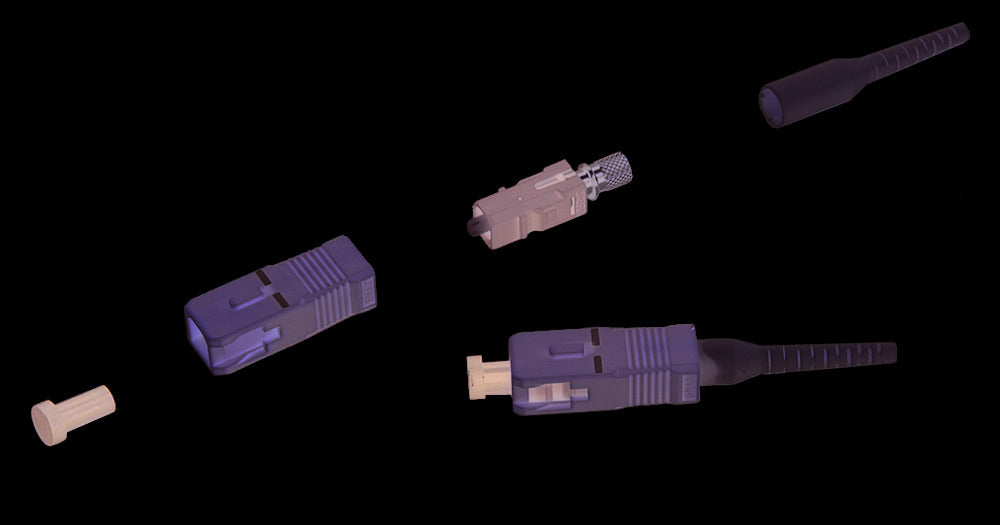

Commscope MFC-SCR-09-BG | LazrSPEED, OptiSPEED Behind The Wall Pre-Radiused SC Connector for 0.9 mm Fiber, multimode

$6.76

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope MFC-SCR-09-BG | LazrSPEED, OptiSPEED Behind The Wall Pre-Radiused SC Connector for 0.9 mm Fiber, multimode

Specifications

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber connector
Product Brand	LazrSPEED / OptiSPEED

General Specifications

Body Style	BTW
Color	Beige
Ferrule Geometry	Pre-radiused
Interface	SC
Interface Feature	Standard

Dimensions

Length	52 mm / 2.047 in
Compatible Cable Diameter	0.9 mm / 0.035 in

Material Specifications

Ferrule Material	Zirconia

Mechanical Specifications

Cable Retention Strength, maximum	1.00 lb @ 0 °

Optical Specifications

Fiber Mode	Multimode
Insertion Loss Change, mating	0.3 dB
Optical Components Standard	ANSI/TIA-568-C.3
Insertion Loss Change, temperature	0.3 dB
Insertion Loss, typical	0.3 dB
Return Loss, minimum	20 dB

Packaging and Weights

Packaging quantity	1

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

5 stars: 2 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Multiple Qualities

I can make list of great features this product offers. Firstly, is has very low insertion loss and back reflection loss is also insignificant. It has high precision alignment. It is compatible with lot different fiber cables. Last but no the least is has a very compact design. I very satisfied with its performance. Will buy again if needed.

Engineering precision

As an electrical engineer I am aware of, that these fiber connectors have been the mainstay of optical fiber connectors for many years. It can be found in almost every communications room worldwide, but used mainly in data communications systems. This specific connector is made up of quality ferrule/crimp barrel. These are suitable for 2 to 3 mm cables. I safely say that they are made with great engineering precision. Really impressive!!
