Brand: CommScope
|
SKU:
246741

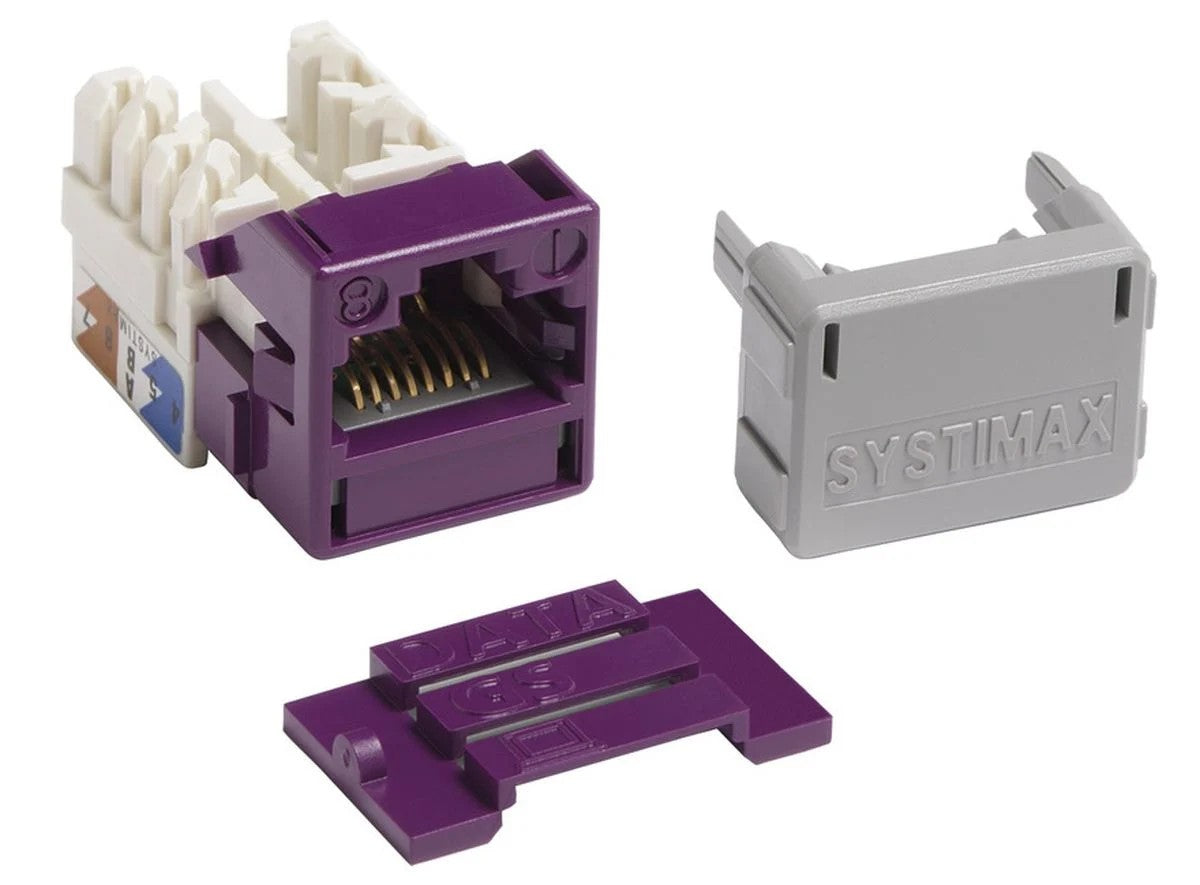

Commscope MGS400-361 | GigaSPEED XL MGS400 Series Category 6 U/UTP Information Outlet, violet
Regular price
$15.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope MGS400-361 | GigaSPEED XL MGS400 Series Category 6 U/UTP ...
Regular price
$15.99
Unit price
Description
Description
Commscope MGS400-361 | GigaSPEED XL MGS400 Series Category 6 U/UTP Information Outlet, violet
Features and Benefits
- Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568-C.2 Category 6
- Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
- Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
- Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate
- Universal design and label supports both T568 A & B wiring
- IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
- Support network line speeds up to at least 10 gigabits per second
- Low-profile rear protective strain relief cap, protects against contamination and secures the connection
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Modular jack |
| Product Brand | GigaSPEED XL |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Unshielded |
| Color | Violet |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Termination Type | IDC |
| Wiring | T568A / T568B |
Dimensions
| Height | 20.32 mm / 0.8 in |
|---|---|
| Width | 20.32 mm / 0.8 in |
| Depth | 30.48 mm / 1.2 in |
| Compatible Conductor Gauge, solid | 22 AWG / 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG / 24 AWG |
Electrical Specifications
| Contact Resistance Variation, maximum | 20 mOhm |
|---|---|
| Contact Resistance, maximum | 100 mOhm |
| Current Rating at Temperature | 1.5 A @ 20 °C / 1.5 A @ 68 °F |
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
| Remote Powering | Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | Copper alloy / High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133 N / 29.9 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging Material | Standard |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
