Brand: CommScope
|
SKU:
687258-PK

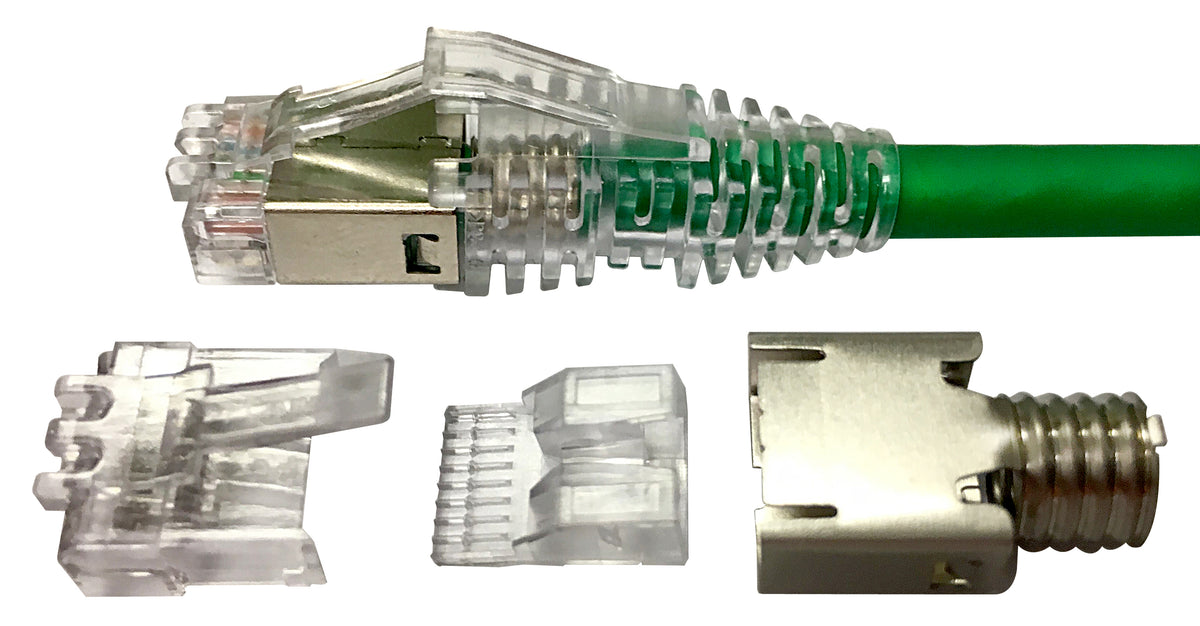

Commscope MP-6S-B-5 | Modular Plug Kit, category 6, shielded, 8-position, 5.1 – 6.0 mm max cable jack OD, 500/bag
Regular price
$552.97
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope MP-6S-B-5 | Modular Plug Kit, category 6, shielded, 8-pos...
Regular price
$552.97
Unit price
Brand: CommScope
|
SKU:
687258-PK
Regular price
$552.97
Unit price
Description
Description
Commscope MP-6S-B-5 | Modular Plug Kit, category 6, shielded, 8-position, 5.1 – 6.0 mm max cable jack OD, 500/bag
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Round, shielded |
| Conductor Type | Solid / Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 2021-08-08 00:00:00 |
| Termination Type | IDC |
Dimensions
| Compatible Cable Diameter, maximum | 6 mm / 0.236 in |
|---|---|
| Compatible Cable Diameter, minimum | 5.1 mm / 0.201 in |
| Compatible Insulated Conductor Diameter, maximum | 1.09 mm / 0.043 in |
| Compatible Insulated Conductor Diameter, minimum | 0.89 mm / 0.035 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–23 AWG |
| Compatible Conductor Gauge, stranded | 26–23 AWG |
Electrical Specifications
| Insulation Resistance, minimum | 500 mOhm |
|---|
Material Specifications
| Contact Base Material | Phosphor bronze |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
| Plug Shield Base Material | Stainless steel |
| Plug Shield Plating Material | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 500 |
|---|---|
| Packaging Type | Bag / Box / Carton |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 114-93040 8-Position Cat6 Shielded Slim-Line Modular Plug
- Customer View Model (pdf)
- 108-131013 Shielded and Unshielded Modular Plugs
- Statement of Compliance RoHS/REACH
- 6-2111979-2 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 501-131013 Shielded and Unshielded Modular Plugs
- CommScope Extended System Warranty
