Brand: CommScope
|
SKU:
10164917

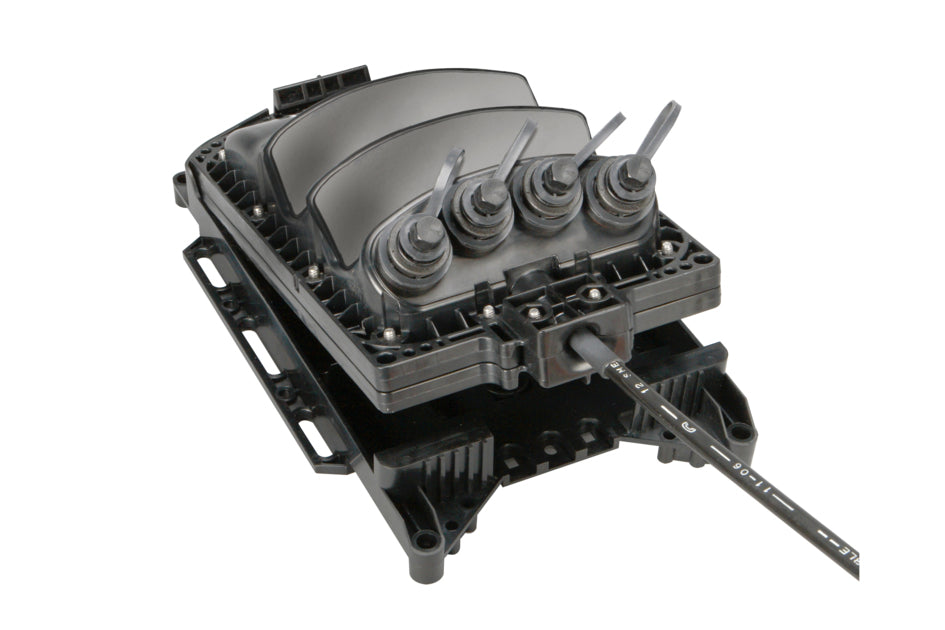

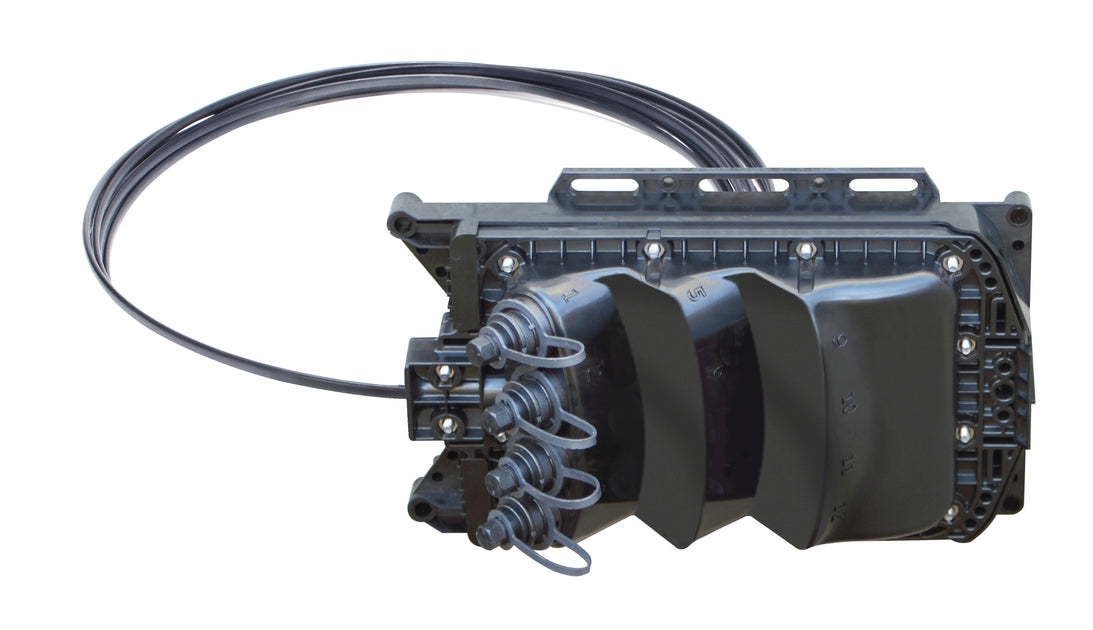

CommScope MST04RH00A0250U | Fiber Optic Multiport Service Terminal, 4-Port, 250 Ft
Regular price
$223.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope MST04RH00A0250U | Fiber Optic Multiport Service Terminal,...
Regular price
$223.51
Unit price
Description
Description
CommScope MST04RH00A0250U | Fiber Optic Multiport Service Terminal, 4-Port, 250 Ft
CommScope - MST04RH00A0250U - Features
- Hardened connectors are factory-terminated and environmentally sealed for use in optical drop Cable deployments
- Plug and play adapter ports ensure rapid Cable installment in the outside plant access section of the network
- Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Specifications
Specifications
CommScope - MST04RH00A0250U - Dimension Drawing
| Click on image to enlarge. |
|---|
CommScope - MST04RH00A0250U - Specifications
| Regional Availability | Asia | Latin America | North America |
|---|---|
| Product Type | Access terminal, without splitter/tap |
| Product Series | MST |
| Cable Type | Dielectric - Flat - Loose Tube |
| Cable, quantity | 1 |
| Distribution Type | 4 ports |
| Enclosure Color | Black |
| Mounting | Handhole | Pedestal | Pole | Strand |
| Port Type | Hardened full-size SC/APC |
| Port, quantity | 4 |
| Splitter, quantity | 0 |
| Stub Type | Stub tail |
| Height | 282.4 mm | 11.118 in |
| Width | 188 mm | 7.402 in |
| Depth | 92.1 mm | 3.626 in |
| Cable Length, stub | 250 ft (76 m) |
| Cable Outer Diameter | 4.5 x 8.1 mm (0.18 x 0.32 in) |
| Click on image to enlarge. | Close Modal |
| Fiber Type | G.657.A1/A2 |
| Operating Wavelength Range | 1260 – 1635 nm |
| Attenuation Cable Coefficient, maximum | 0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | 5%–100%, condensing |

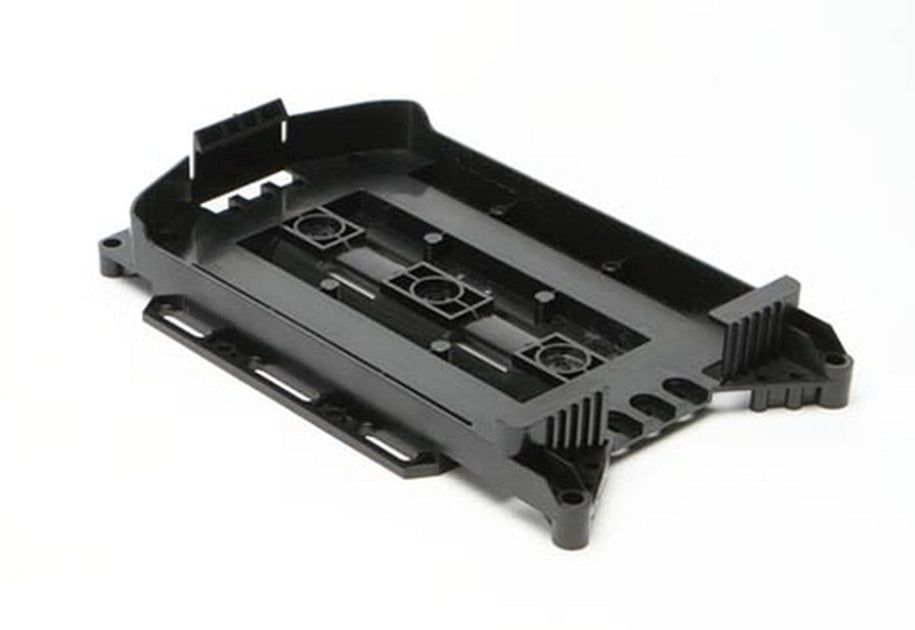

| Included | Enclosure (1) | Universal mounting bracket (1) |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, without Cable | 1.36 kg | 2.998 lb |
| ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS | Designed, manufactured and/or distributed under this quality management system, Compliant, Below maximum concentration value, Compliant as per SVHC revision on www.commscope.com/ProductCompliance, Compliant |
