Brand: CommScope
|
SKU:
1010731

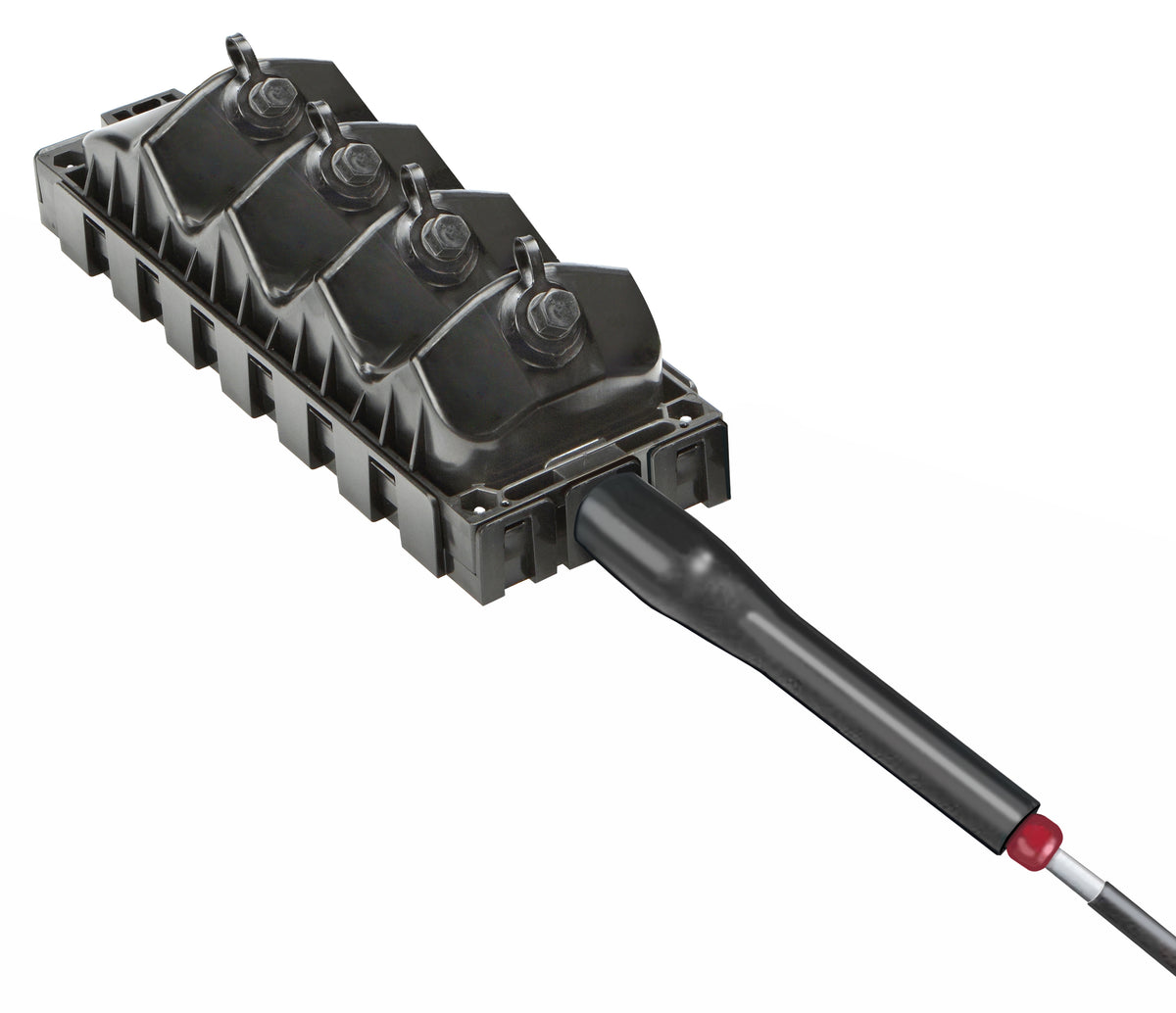

Commscope MST04XX00A2000U | DLX Mini-MST, Fiber Optic Multiport Service Terminal, 4-port, dielect. flat loose tube cable, 2000 ft
Regular price
$726.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope MST04XX00A2000U | DLX Mini-MST, Fiber Optic Multiport Ser...
Regular price
$726.24
Unit price
Description
Description
Commscope MST04XX00A2000U | DLX Mini-MST, Fiber Optic Multiport Service Terminal, 4-port, dielect. flat loose tube cable, 2000 ft
Features and Benefits
- Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
- Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network (Plug_and_p)
- Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Specifications
Specifications
Dimension Drawing
| Click on image to enlarge. |
|---|
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Latin America / North America |
|---|---|
| Product Type | Access terminal, without splitter/tap |
| Product Brand | DLX |
| Product Series | Mini-MST |
General Specifications
| Cable Type | Dielectric - Flat - Loose Tube |
|---|---|
| Cable, quantity | 1 |
| Distribution Type | 4 ports |
| Enclosure Color | Black |
| Mounting | Handhole / Pedestal / Pole / Strand |
| Port Type | Hardened mini-size DLX |
| Port, quantity | 4 |
| Splitter, quantity | 0 |
| Stub Type | Stub tail |
Dimensions
| Height | 298 mm / 11.732 in |
|---|---|
| Width | 130.3 mm / 5.13 in |
| Depth | 89 mm / 3.504 in |
| Cable Stub Length | 609.600 m / 2000 ft |
| Cable Outer Diameter | 4.5 x 8.1 mm (0.18 x 0.32 in) |
Material Specifications
| Enclosure Material Type | Gasketed hardened plastic |
|---|
Optical Specifications
| Fiber Type | G.652.D |
|---|---|
| Attenuation, maximum | 0.30 dB/km/1550 nm / 0.40 dB/km/1310 nm |
| Directivity, minimum | 60 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Terminal Connector, maximum | 0.4 dB |
| Insertion Loss, Terminal Connector, typical | 0.16 dB |
| Return Loss, Connector, minimum | 65 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
|---|---|
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Above ground / Below ground / Buried |
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | IEC 60529, IP68 + 2 m waterhead / Telcordia GR-3120-CORE / Telcordia GR-326-CORE / Telcordia GR-771-CORE |
| UV Resistance | UV stabilized |
Packaging and Weights
| Included | Enclosure (1) / Universal mounting bracket (1) |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Box / Carton |
| Weight, without cable | 0.99 kg / 2.183 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 1317840 MST/DLX Access Terminals
- ADCP-96-067 Cleaning Hardened Connectors
- Statement of Compliance RoHS/REACH
- MST-04XX00-A2000U Product specifications (Comprehensive)
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- ADCP-96-159 DLX Access Terminal
- MST/DLX Aerial Strand Mounting
- MST/DLX Handhole Mounting
