Commscope MT-197-48 | Single Support Arm, 48 in, includes pipe
Regular price
$592.68
Unit price
Brand: CommScope
|
SKU:
469263
Regular price
$592.68
Unit price
Description
Description
Commscope MT-197-48 | Single Support Arm, 48 in, includes pipe
Specifications
Specifications

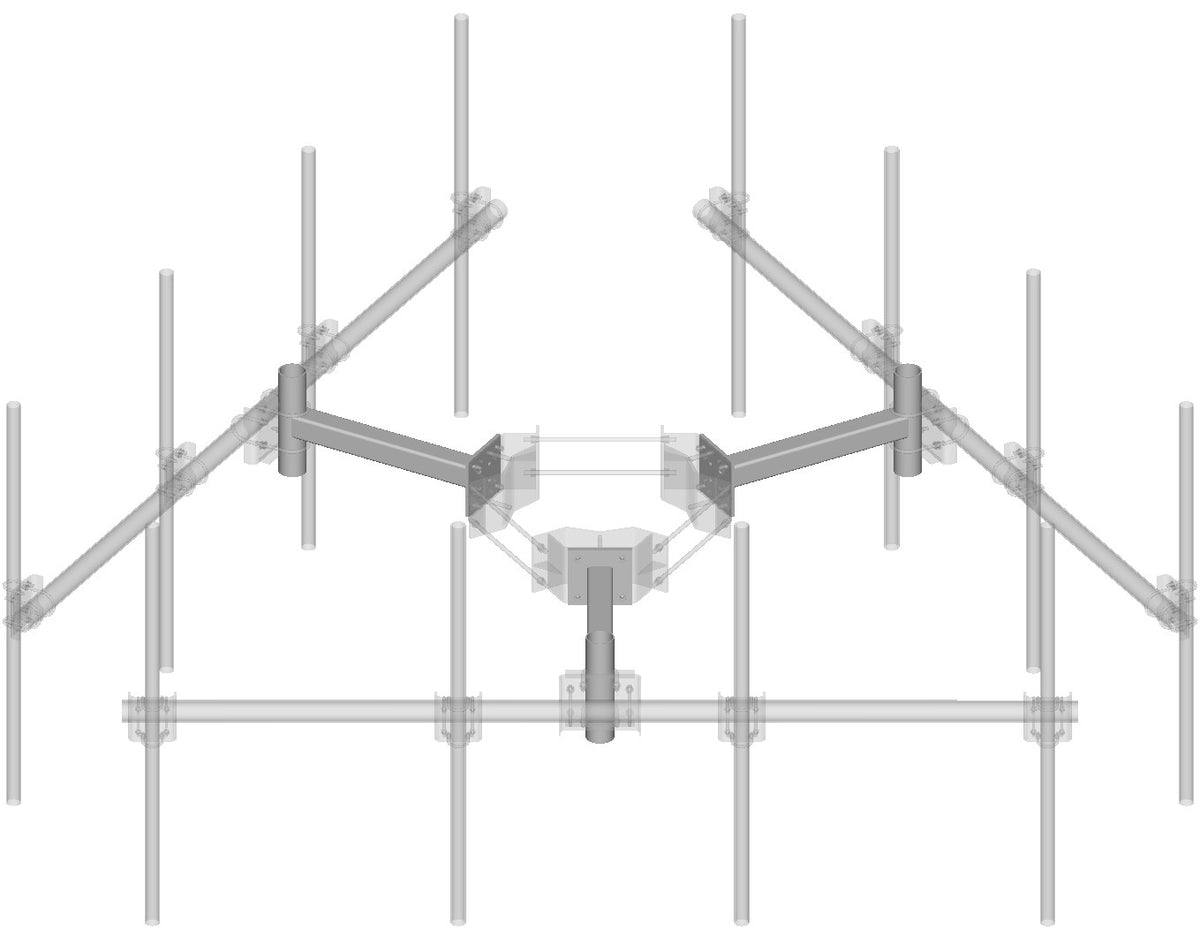

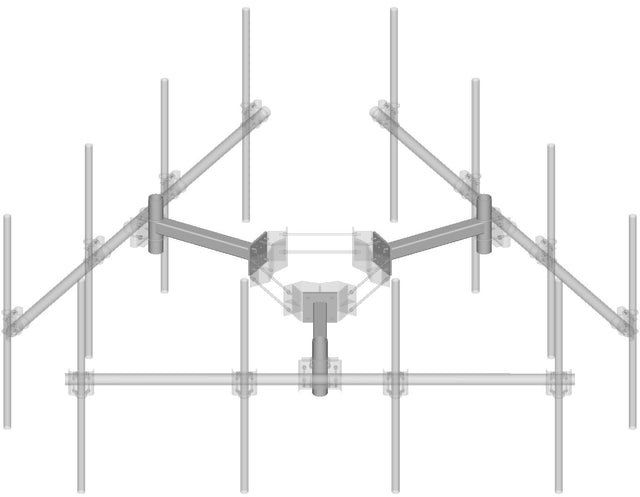

Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Universal ring mount |
|---|
General Specifications
| Mounting | Ring mount |
|---|---|
| Pipe, quantity | 1 |
Dimensions
| Height | 457.2 mm / 18 in |
|---|---|
| Width | 254 mm / 10 in |
| Length | 1219.2 mm / 48 in |
| Pipe Length | 457.2 mm / 18 in |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
| Stand-off Distance | 1219.2 mm / 48 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL / 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
|---|---|
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Environmental Specifications
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
|---|
Packaging and Weights
| Included | Hardware / Stand-off arms |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 37.2 kg / 82.012 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
