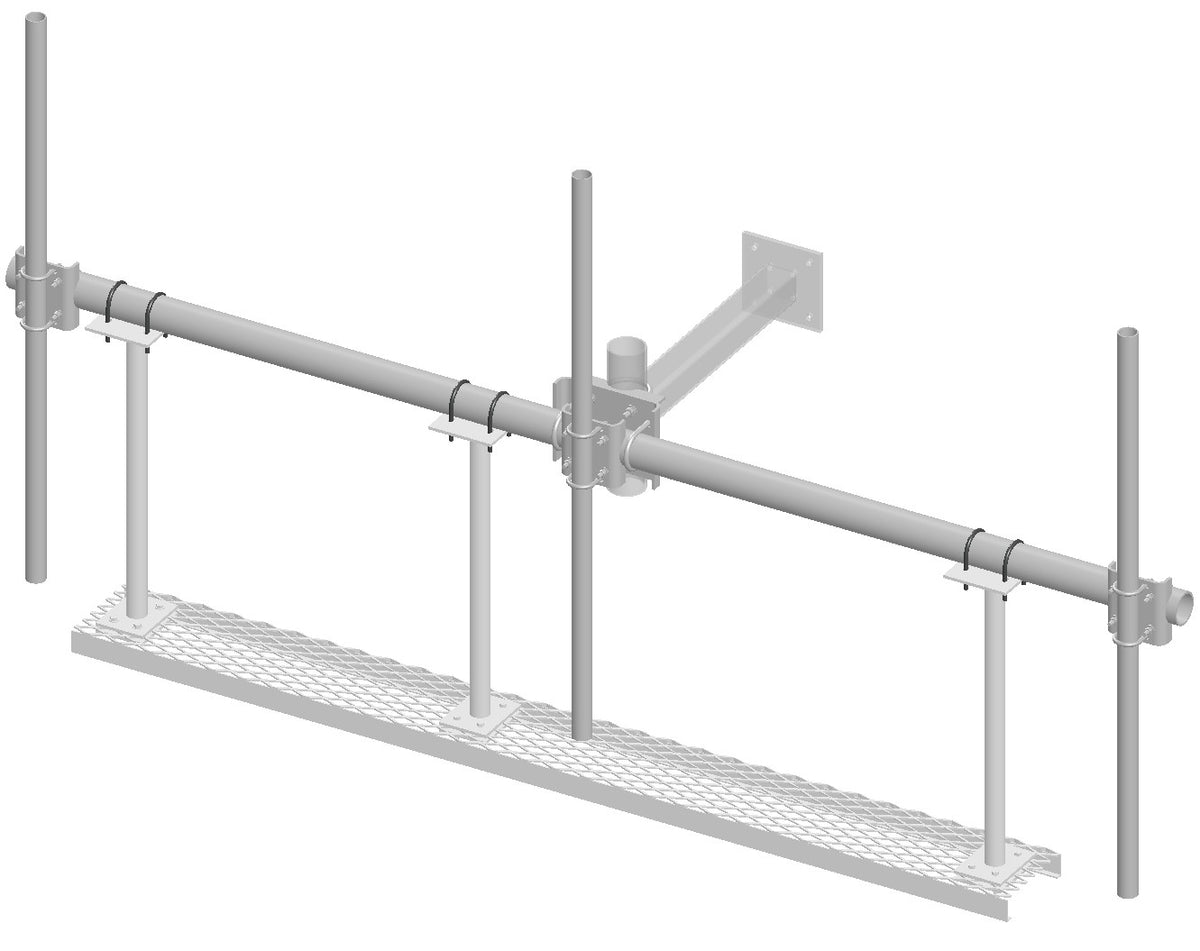

Commscope MT-216-NS | Cellular Pipe Frame, 12 ft face
Regular price
$524.74
Unit price
Brand: CommScope
|
SKU:
469270
Regular price
$524.74
Unit price
Description
Description
Commscope MT-216-NS | Cellular Pipe Frame, 12 ft face
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Pipe mount |
|---|
General Specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
|---|
Dimensions
| Height | 254 mm / 10 in |
|---|---|
| Face Width | 3.81 m / 12.5 ft |
| Width | 3810 mm / 150 in |
| Length | 88.9 mm / 3.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL / 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
|---|---|
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Environmental Specifications
| EPA with 1/2 in (12 mm) radial ice | 1.347 m² / 14.5 ft² |
|---|---|
| EPA without ice | 1.059 m² / 11.4 ft² |
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
Packaging and Weights
| Included | Cellular pipe frames |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 66.3 kg / 146.166 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
