Commscope MT-395 | Standard Pipe Mount, 4-1/2 in OD x 63 in
Regular price
$441.79
Unit price
Brand: CommScope
|
SKU:
469304
Regular price
$441.79
Unit price
Description
Description
Commscope MT-395 | Standard Pipe Mount, 4-1/2 in OD x 63 in
Specifications
Specifications

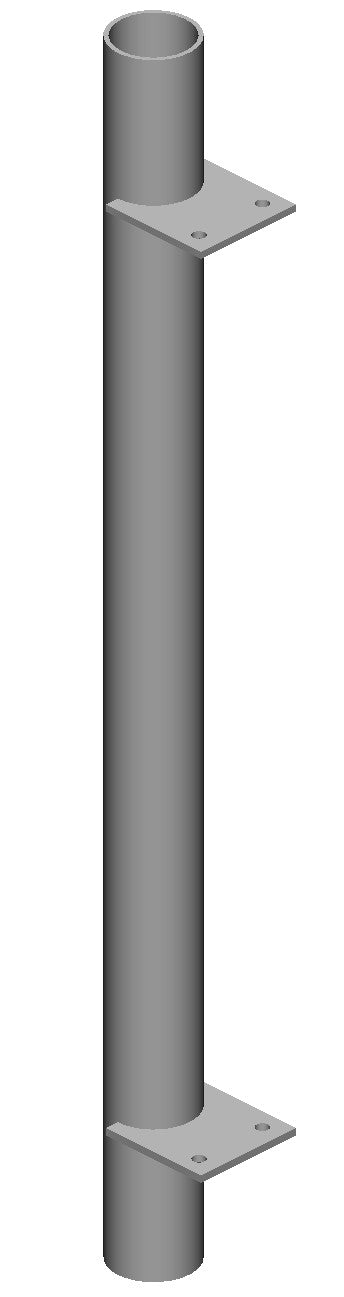

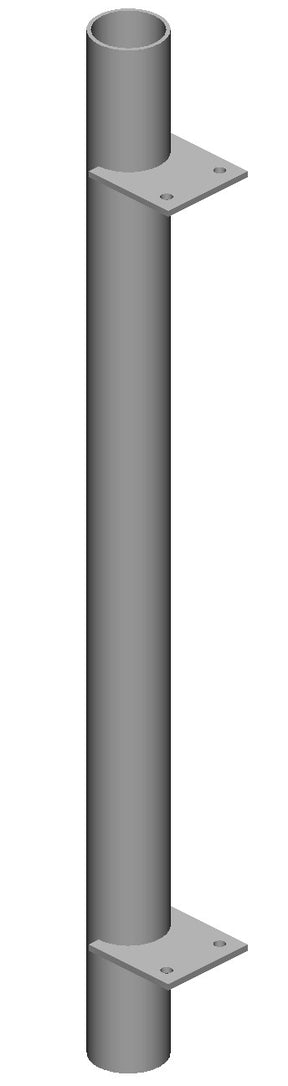

Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Pipe mount |
|---|
General Specifications
| Mounting | Saddle mounts |
|---|---|
| Note | One 4 ft microwave antenna per sector, with antenna stiff arm |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 177.8 mm / 7 in |
|---|---|
| Width | 127 mm / 5 in |
| Length | 1600.2 mm / 63 in |
| Pipe Length | 1600.2 mm / 63 in |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 90 mph (BWS) at 150 ft AGL |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Pipe mounts |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 29.3 kg / 64.595 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
