Brand: CommScope | SKU: 371COMOS2TBAIRLSZH24

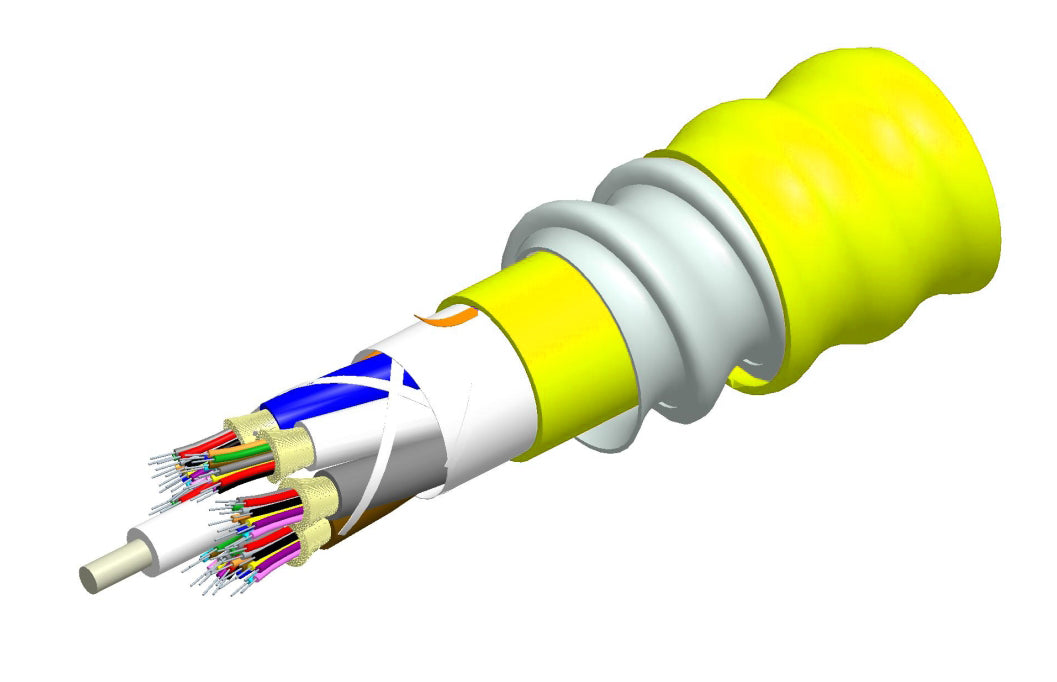

Commscope N-024-DZ-8W-FSUYL/B2 | TeraSPEED Low Smoke Zero Halogen Riser Distribution Cable, interlocking aluminum armored with low smoke zero halogen riser jacket, 24 fiber single-unit

$5.67

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope N-024-DZ-8W-FSUYL/B2 | TeraSPEED Low Smoke Zero Halogen Riser Distribution Cable, interlocking aluminum armored with low smoke zero halogen riser jacket, 24 fiber single-unit

Specifications

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber indoor cable

General Specifications

Armor Type	Interlocking aluminum
Cable Type	Distribution
Construction Type	Armored
Fiber Type, quantity	24
Jacket Color	Yellow
Subunit Type	Gel-free
Total Fiber Count	24

Dimensions

Diameter Over Armor	13.34 mm / 0.525 in
Diameter Over Jacket	15.4 mm / 0.606 in

Mechanical Specifications

Minimum Bend Radius, loaded	307 mm / 12.087 in
Minimum Bend Radius, unloaded	215 mm / 8.465 in
Tensile Load, long term, maximum	400 N / 89.924 lbf
Tensile Load, short term, maximum	1335 N / 300.12 lbf
Compression	85 N/mm / 485.363 lb/in
Compression Test Method	FOTP-41 / IEC 60794-1 E3
Flex	25 cycles
Flex Test Method	FOTP-104 / IEC 60794-1 E6
Impact	35 N-m / 309.776 in lb
Impact Test Method	FOTP-25 / IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 / IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum	194 m / 636.483 ft

Optical Specifications

Fiber Type	G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED

Environmental Specifications

Installation temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596 / Telcordia GR-409
EN50575 CPR Cable EuroClass Fire Performance	B2ca
EN50575 CPR Cable EuroClass Smoke Rating	s1a
EN50575 CPR Cable EuroClass Droplets Rating	d2
EN50575 CPR Cable EuroClass Acidity Rating	a1
Environmental Space	Low Smoke Zero Halogen (LSZH) / Riser
Flame Test Listing	NEC OFCR-LS (ETL) and c(ETL)
Flame Test Method	IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685

Environmental Test Specifications

Heat Age	-20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-10 °C to +60 °C (+14 °F to +140 °F)
Low High Bend Test Method	FOTP-37 / IEC 60794-1 E11
Temperature Cycle	-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 / IEC 60794-1 F1

Packaging and Weights

Cable weight	211 kg/km / 141.785 lb/kft

Regulatory Compliance/Certifications

CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
