Brand: CommScope
|
SKU:
371COMOM3TBALSZH48

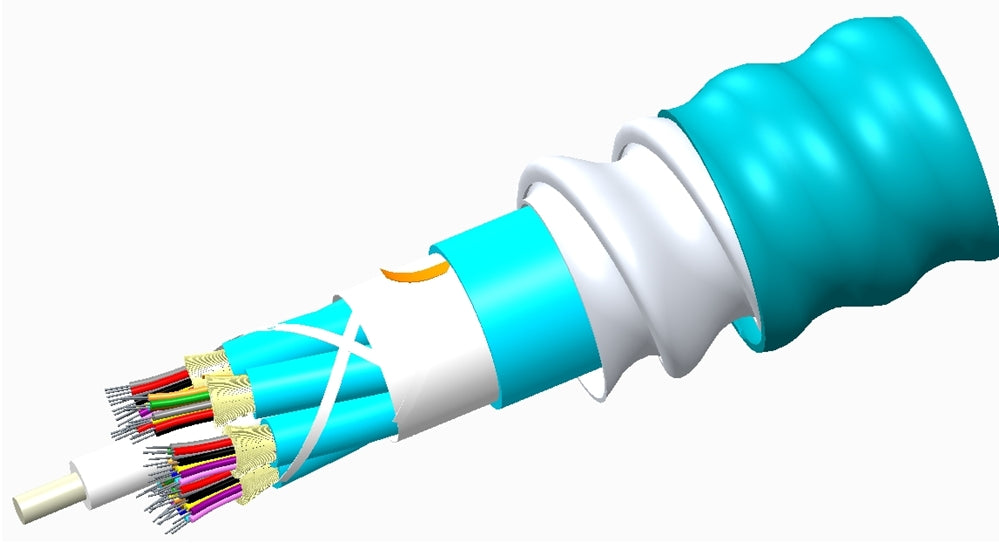

Commscope N-048-DZ-5L-FMUAQ/B2 | LazrSPEED Low Smoke Zero Halogen Riser Distribution Cable, interlocking aluminum armored with low smoke zero halogen riser jacket, 48 fiber multi-unit with 12 fiber subunits
Regular price
$11.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope N-048-DZ-5L-FMUAQ/B2 | LazrSPEED Low Smoke Zero Halogen R...
Regular price
$11.58
Unit price
Brand: CommScope
|
SKU:
371COMOM3TBALSZH48
Regular price
$11.58
Unit price
Shipping calculated at checkout.
Description
Description
Commscope N-048-DZ-5L-FMUAQ/B2 | LazrSPEED Low Smoke Zero Halogen Riser Distribution Cable, interlocking aluminum armored with low smoke zero halogen riser jacket, 48 fiber multi-unit with 12 fiber subunits
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
General Specifications
| Armor Type | Interlocking aluminum |
|---|---|
| Cable Type | Distribution |
| Construction Type | Armored |
| Fiber Type, quantity | 48 |
| Fibers per Subunit, quantity | 12 |
| Jacket Color | Aqua |
| Subunit Type | Gel-free |
| Subunit, quantity | 4 |
| Total Fiber Count | 48 |
Dimensions
| Buffer Tube/Subunit Diameter | 6.07 mm / 0.239 in |
|---|---|
| Diameter Over Armor | 22.23 mm / 0.875 in |
| Diameter Over Jacket | 24.3 mm / 0.957 in |
Mechanical Specifications
| Minimum Bend Radius, loaded | 485 mm / 19.094 in |
|---|---|
| Minimum Bend Radius, unloaded | 340 mm / 13.386 in |
| Tensile Load, long term, maximum | 400 N / 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N / 300.12 lbf |
| Compression | 85 N/mm / 485.363 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 35 N-m / 309.776 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 92 m / 301.837 ft |
Optical Specifications
| Fiber Type | OM3, LazrSPEED 300 / OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 / Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Low Smoke Zero Halogen (LSZH) / Riser |
| Flame Test Listing | NEC OFCR-LS (ETL) and c(ETL) |
| Flame Test Method | IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685 |
Environmental Test Specifications
| Heat Age | -20 °C to +85 °C (-4 °F to +185 °F) |
|---|---|
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -10 °C to +60 °C (+14 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -20 °C to +70 °C (-4 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 443 kg/km / 297.682 lb/kft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- EN50575 DoP EuroClass B2ca s2 d2 a1 (Danish)
- EN50575 DoP EuroClass B2ca s2 d2 a1 (Dutch)
- EN50575 DoP EuroClass B2ca s2 d2 a1 (French)
- EN50575 DoP EuroClass B2ca s2 d2 a1 (German)
- EN50575 DoP EuroClass B2ca s2 d2 a1 (Italian)
- EN50575 DoP EuroClass B2ca s2 d2 a1 (Spanish)
- Statement of Compliance RoHS/REACH
