Brand: CommScope
|
SKU:
622632

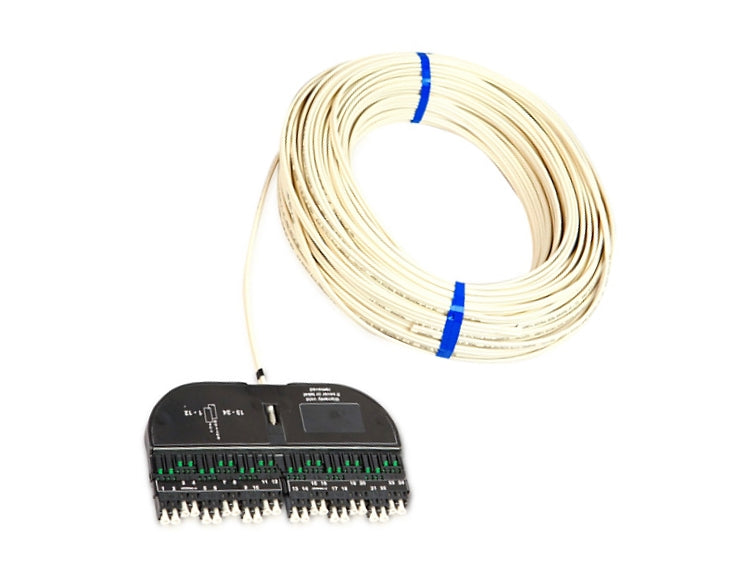

Commscope NG4-CMDK0M2046 | NG4access Cabled Module, singlemode LC/UPC to stub, 24 fiber, microcable, 46 m
Regular price
$1,250.75
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope NG4-CMDK0M2046 | NG4access Cabled Module, singlemode LC/U...
Regular price
$1,250.75
Unit price
Brand: CommScope
|
SKU:
622632
Regular price
$1,250.75
Unit price
Description
Description
Commscope NG4-CMDK0M2046 | NG4access Cabled Module, singlemode LC/UPC to stub, 24 fiber, microcable, 46 m
Features and Benefits
- Cabled modules enable the routing of fiber cable to the frame, where multiple connectors are terminated to the frame with a single click
- Integrated connectors ensure the cables are kept in sequential order, and help prevent accidental fiber breakage or disruption to adjacent fibers during installation
- Available in a pigtail version for splicing on frame or preterminated to 24-fiber microcable or conventional IFC cable
Specifications
Specifications
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber cabled module |
| Product Brand | NG4access |
| Product Series | NG4access |
General Specifications
| Application | For use with NG4 panels |
|---|---|
| Adapter Color | Blue |
| Adapters, quantity, front | 12 |
| Adapters, quantity, rear | 1 |
| Body Style | Duplex / Straight orientation |
| Cable Stub Type | Microcable |
| Color, front | Black |
| Color, housing | Black |
| Color, rear | Black |
| Interface, front | LC/UPC |
| Interface, rear | Stub tail |
| Polarity | Pairs, straight |
| Total Fibers, quantity | 24 |
| Total Ports, quantity, front | 24 |
Dimensions
| Height | 13.21 mm / 0.52 in |
|---|---|
| Width | 159.77 mm / 6.29 in |
| Depth | 92.71 mm / 3.65 in |
| Cable Stub Length | 46 m / 150.919 ft |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2 |
Environmental Specifications
| Operating Temperature | -5 °C to +40 °C (+23 °F to +104 °F) |
|---|---|
| Storage Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
| Relative Humidity | Up to 85%, non-condensing |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 300001758609 NG4access Cabled Module LC Installation Drawing
- TECP-90-717 NG4access ODF Platform Cabled Module (CMOD)
- Statement of Compliance RoHS/REACH
- NG4-CMDK0M2046 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Visio Stencil Resources
- CommScope Limited Product Warranty
