Brand: CommScope
|
SKU:
568052

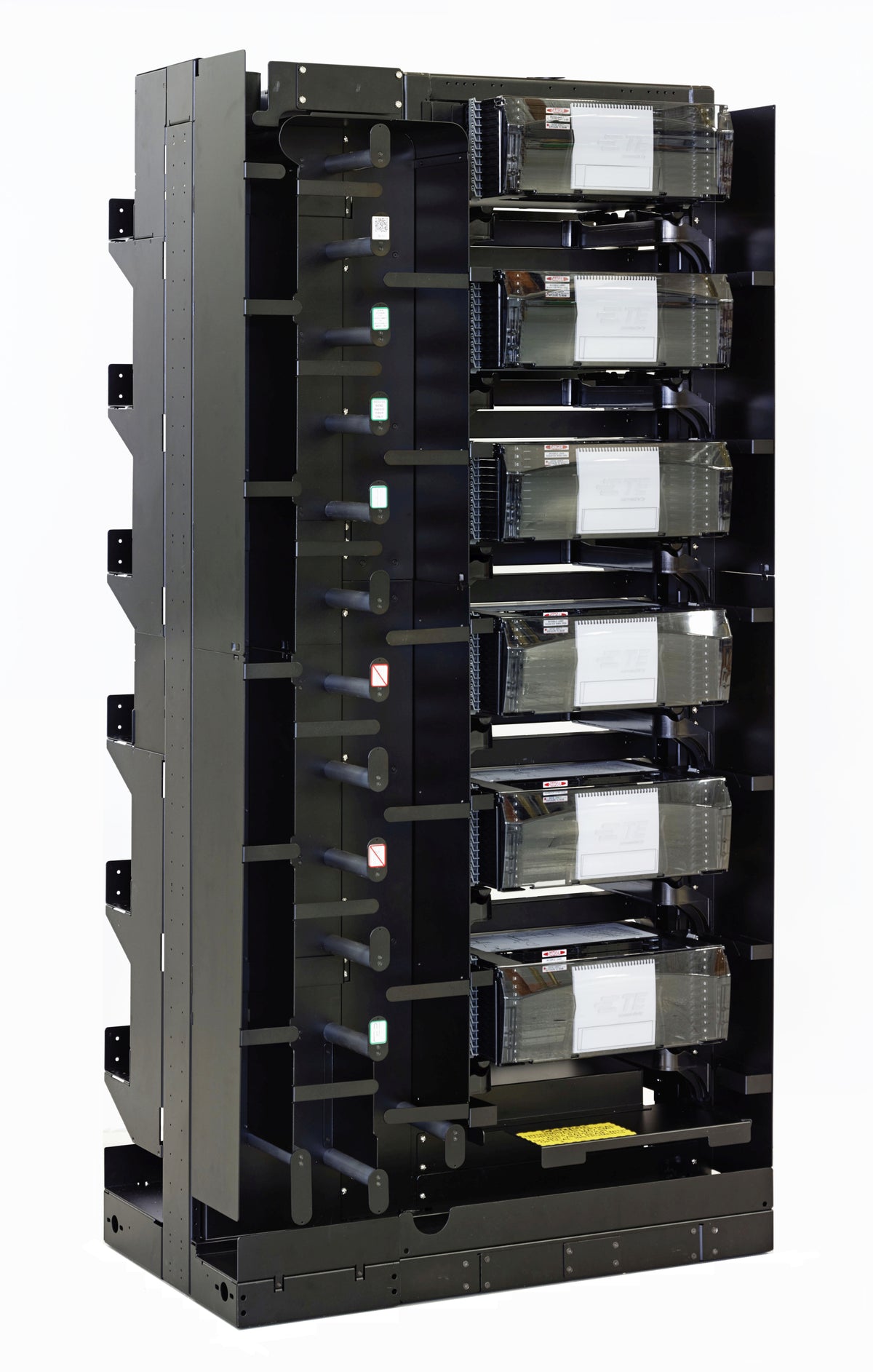

Commscope NG4-FR1000A1 | NG4access Fiber Skeleton Bay with integrated FOTSP
Regular price
$9,830.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope NG4-FR1000A1 | NG4access Fiber Skeleton Bay with integrat...
Regular price
$9,830.64
Unit price
Description
Description
Commscope NG4-FR1000A1 | NG4access Fiber Skeleton Bay with integrated FOTSP
Features and Benefits
- Utilizes an industry-standard base frame and has six horizontal rear troughs and lower trough
- Has mounting positions for (6) NG4access 7-inch high chassis, which will hold up to 576 LC or 288 SC connections
- On the rear of the frame, a mounting location is available for a single splice chassis without sacrificing an available chassis position for standard chassis
- Includes a built-in jumper storage area on the left side for additional flexibility in cable routing
- The vertical cable guides and slack storage system are designed to accommodate up to 3,456 LC terminations
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Product Type | Frame |
| Product Brand | NG4access |
| Product Series | NG4access |
General Specifications
| Access | Front / Rear |
|---|---|
| Application | For use with NG4 panels |
| Color | Black |
| Growth Configuration | Unloaded |
| Mounting | Concrete floor / Raised floor |
Dimensions
| Height | 2133.6 mm / 84 in |
|---|---|
| Width | 1066.8 mm / 42 in |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Environmental Specifications
| Environmental Space | Indoor |
|---|---|
| Qualification Standards | Seismic rating, zone 4 / Telcordia GR-449-CORE |
Packaging and Weights
| Included | Cable management |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Crate / Pallet |
| Weight, net | 541.136 kg / 1193 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- TECP-90-701 NG4access Frame Application & Planning
- 300001762538 NG4access Iso Pad Installation Drawing
- 300001771255 NG4access Bay Drawing
- TECP-90-708 NG4access Frame Installation Manual (Raised Floor)
- Statement of Compliance RoHS/REACH
- NG4-FR1000A1 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- DFO NG4access Plataforma Manual de Operaci Mantenimient
