Brand: CommScope
|
SKU:
568064

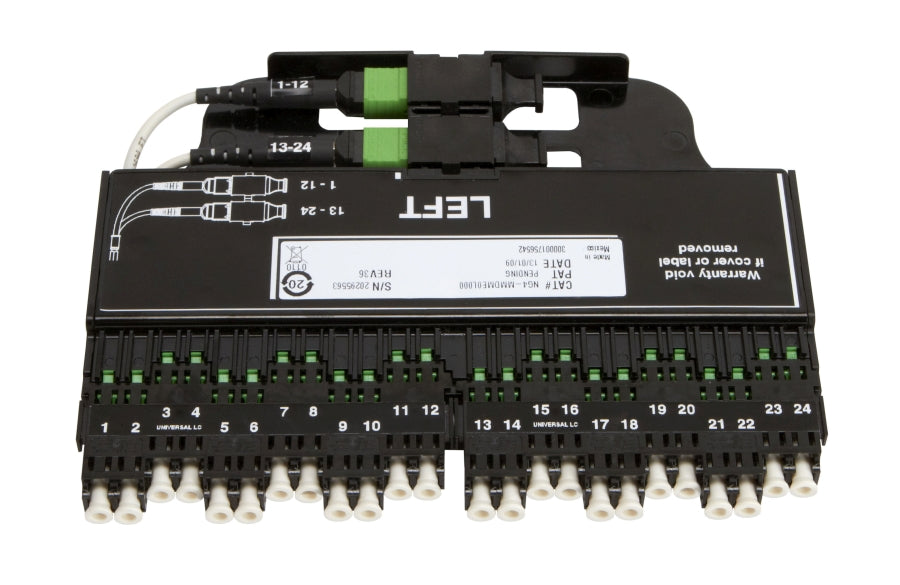

Commscope NG4-MMDKE0L000 | NG4access MPO Module, singlemode, LC/UPC-MPO 24 fiber, left exit (for MPO module)
Regular price
$1,012.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope NG4-MMDKE0L000 | NG4access MPO Module, singlemode, LC/UPC...
Regular price
$1,012.90
Unit price
Description
Description
Commscope NG4-MMDKE0L000 | NG4access MPO Module, singlemode, LC/UPC-MPO 24 fiber, left exit (for MPO module)
Features and Benefits
- Offers the same craft-friendly interface for LC and SC connectors as the cabled module
- Allow installers to connect an MPO trunk cable to turn up services in rapid installation applications
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Brand | NG4access |
| Product Series | NG4access |
General Specifications
| Application | NG4 MPO module |
|---|---|
| Adapter Color | Blue |
| Adapters, quantity, front | 12 |
| Body Style | Duplex |
| Color, front | Black |
| Color, housing | Black |
| Color, rear | Black |
| Interface, front | LC |
| Interface Feature, front | UPC |
| Interface, rear | MPO |
| Interface Feature, rear | UPC |
| Polarity | Method A |
| Total Fibers, quantity | 24 |
| Total Ports, quantity, front | 24 |
Dimensions
| Height | 13.21 mm / 0.52 in |
|---|---|
| Width | 159.77 mm / 6.29 in |
| Depth | 122.68 mm / 4.83 in |
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2 |
Environmental Specifications
| Operating Temperature | -5 °C to +40 °C (+23 °F to +104 °F) |
|---|---|
| Storage Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
| Relative Humidity | Up to 85%, non-condensing |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Bag / Carton |
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 300001758610 NG4access MPO Module LC Installation Drawing
- TECP-90-716 NG4access ODF MPO Modules Installation
- Statement of Compliance RoHS/REACH
- NG4-MMDKE0L000 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- NG4access MPO Module Installation in Acces Tray
- Visio Stencil Resources
