Brand: CommScope
|
SKU:
568066

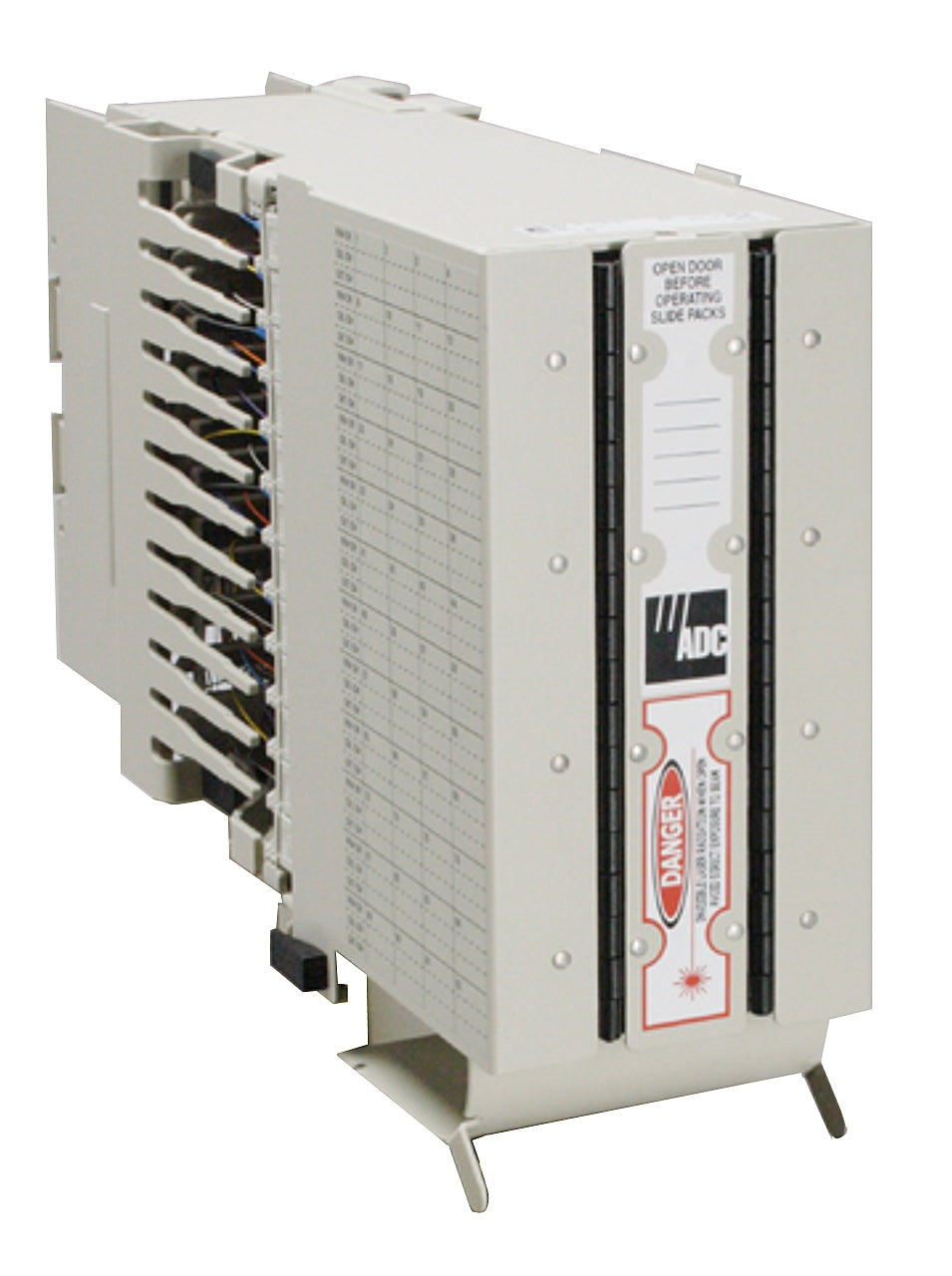

Commscope NGF-MPML0K512 | Next Generation Frame (NGF) Fiber Termination Block, 144 LC/UPC, singlemode, left oriented, putty white, MPO at rear end
Regular price
$10,259.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope NGF-MPML0K512 | Next Generation Frame (NGF) Fiber Termina...
Regular price
$10,259.09
Unit price
Description
Description
Commscope NGF-MPML0K512 | Next Generation Frame (NGF) Fiber Termination Block, 144 LC/UPC, singlemode, left oriented, putty white, MPO at rear end
Specifications
Specifications
Product Classification
| Regional Availability | EMEA / Latin America / North America |
|---|---|
| Product Type | Fiber patch block |
| Product Series | NGF |
General Specifications
| Functionality | Patching |
|---|---|
| Application | Used in NGF-style frames only |
| Body Style | Left orientation |
| Color | Putty white |
| Color, front | Putty white |
| Door Type, front | Compression latch / Hinged |
| Growth Configuration | Fully loaded |
| Interface, front | LC |
| Interface Feature, front | Standard |
| Interface, rear | MPO |
| Rack Type | NGF |
| Shelf Movement | Fixed |
| Total Ports, quantity | 144 |
Dimensions
| Height | 239.268 mm / 9.42 in |
|---|---|
| Width | 153.416 mm / 6.04 in |
| Depth | 434.34 mm / 17.1 in |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Optical Specifications
| Fiber Mode | Singlemode |
|---|
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 80%, non-condensing |
| Qualification Standards | Telcordia GR-449-CORE |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- Statement of Compliance RoHS/REACH
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- ADCP-90-372 Next Generation Frame (NGF) Fiber Termination Block With MPO Connectors (FTB w/MPO)
- Visio Stencil Resources
- CommScope Limited Product Warranty
