Commscope NHH-65B-R2B | 6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 2x RET. Both high bands share the same electrical tilt.
Regular price
$4,152.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope NHH-65B-R2B | 6-port sector antenna, 2x 698–896 and 4x 16...
Regular price
$4,152.71
Unit price
Description
Description
Commscope NHH-65B-R2B | 6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 2x RET. Both high bands share the same electrical tilt.
Features and Benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- Separate RS-485 RET input/output for low and high band
- One RET for low band and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
Specifications
Specifications
Array Layout
| Click on image to enlarge. |
|---|

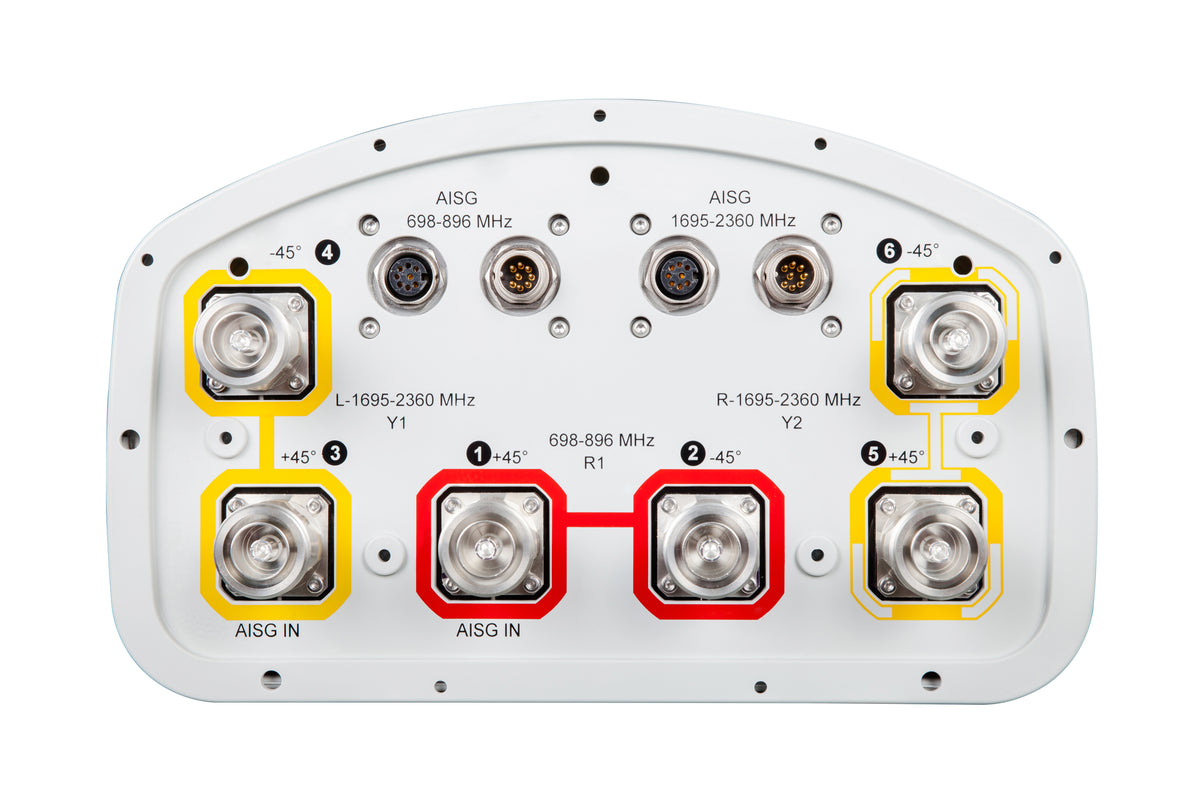

Port Configuration
| Click on image to enlarge. |
|---|
General Specifications
| Antenna Type | Sector |
|---|---|
| Band | Multiband |
| Color | Light gray |
| Effective Projective Area (EPA), frontal | 0.26 m² / 2.799 ft² |
| Effective Projective Area (EPA), lateral | 0.22 m² / 2.368 ft² |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage / Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote Electrical Tilt (RET) Information, General
| RET Interface | 8-pin DIN Female / 8-pin DIN Male |
|---|---|
| RET Interface, quantity | 2 female / 2 male |
Dimensions
| Width | 301 mm / 11.85 in |
|---|---|
| Depth | 180 mm / 7.087 in |
| Length | 1828 mm / 71.969 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 698 – 896 MHz / 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W/50 °C |
Remote Electrical Tilt (RET) Information, Electrical
| Protocol | 3GPP/AISG 2.0 (Single RET) |
|---|---|
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 13 W |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 / Port 3 |
| Internal RET | High band (1) / Low band (1) |
Mechanical Specifications
| Wind Loading at Velocity, frontal | 278.0 N/150 km/h / 63.6 lbf/150 km/h |
|---|---|
| Wind Loading at Velocity, lateral | 230.0 N/150 km/h / 51.7 lbf/150 km/h |
| Wind Loading at Velocity, maximum | 120.7 lbf/150 km/h / 537.0 N/150 km/h |
| Wind Loading at Velocity, rear | 282.0 N/150 km/h / 63.4 lbf/150 km/h |
| Wind Speed, maximum | 241 km/h / 149.75 mph |
Packaging and Weights
| Width, packed | 409 mm / 16.102 in |
|---|---|
| Depth, packed | 299 mm / 11.772 in |
| Length, packed | 1952 mm / 76.85 in |
| Net Weight, without mounting kit | 19.8 kg / 43.651 lb |
| Weight, gross | 32.3 kg / 71.209 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
