Brand: CommScope
|
SKU:
372COMOS2LTDCT12
Commscope O002DA8WF02NS | TeraSPEED Single Jacket Single Armor Arid-Core Drop Cable
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope O002DA8WF02NS | TeraSPEED Single Jacket Single Armor Arid...
Regular price
$1.46
Unit price
Brand: CommScope
|
SKU:
372COMOS2LTDCT12
Regular price
$1.46
Unit price
Description
Description
Commscope O002DA8WF02NS | TeraSPEED Single Jacket Single Armor Arid-Core Drop Cable
Features and Benefits
- Corrugated steel tape armor is strong yet flexible, providing additional crush and rodent protection
Specifications
Specifications

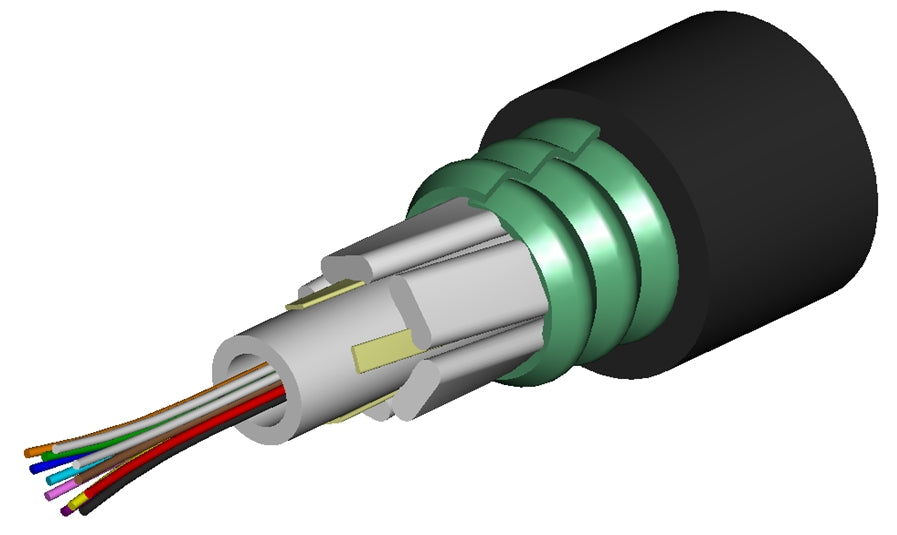

Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber drop cable |
General Specifications
| Armor Type | Corrugated steel |
|---|---|
| Cable Type | Central loose tube |
| Construction Type | Armored |
| Fiber Type, quantity | 2 |
| Fibers per Subunit, quantity | 2 |
| Jacket Color | Black |
| Subunit Type | Gel-filled |
| Subunit, quantity | 1 |
| Total Fiber Count | 2 |
Dimensions
| Buffer Tube/Subunit Diameter | 3 mm / 0.118 in |
|---|---|
| Diameter Over Jacket | 8 mm / 0.315 in |
Material Specifications
| Jacket Material | PE |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 12 cm / 4.724 in |
|---|---|
| Minimum Bend Radius, unloaded | 8 cm / 3.15 in |
| Tensile Load, long term, maximum | 400 N / 89.924 lbf |
| Tensile Load, short term, maximum | 1334 N / 299.895 lbf |
| Compression | 10 N/mm / 57.101 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 35 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 2.94 N-m / 26.021 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 595 m / 1952.1 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED / OS2 / OS2 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-110-717 / EN 187105 / Telcordia GR-20 |
| Environmental Space | Aerial, lashed / Buried |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze | -2 °C / 28.4 °F |
|---|---|
| Cable Freeze Test Method | FOTP-98 / IEC 60794-1 F15 |
| Drip | 70 °C / 158 °F |
| Drip Test Method | FOTP-81 / IEC 60794-1 E14 |
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -30 °C to +60 °C (-22 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 69 kg/km / 46.366 lb/kft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
