Brand: CommScope
|
SKU:
443846

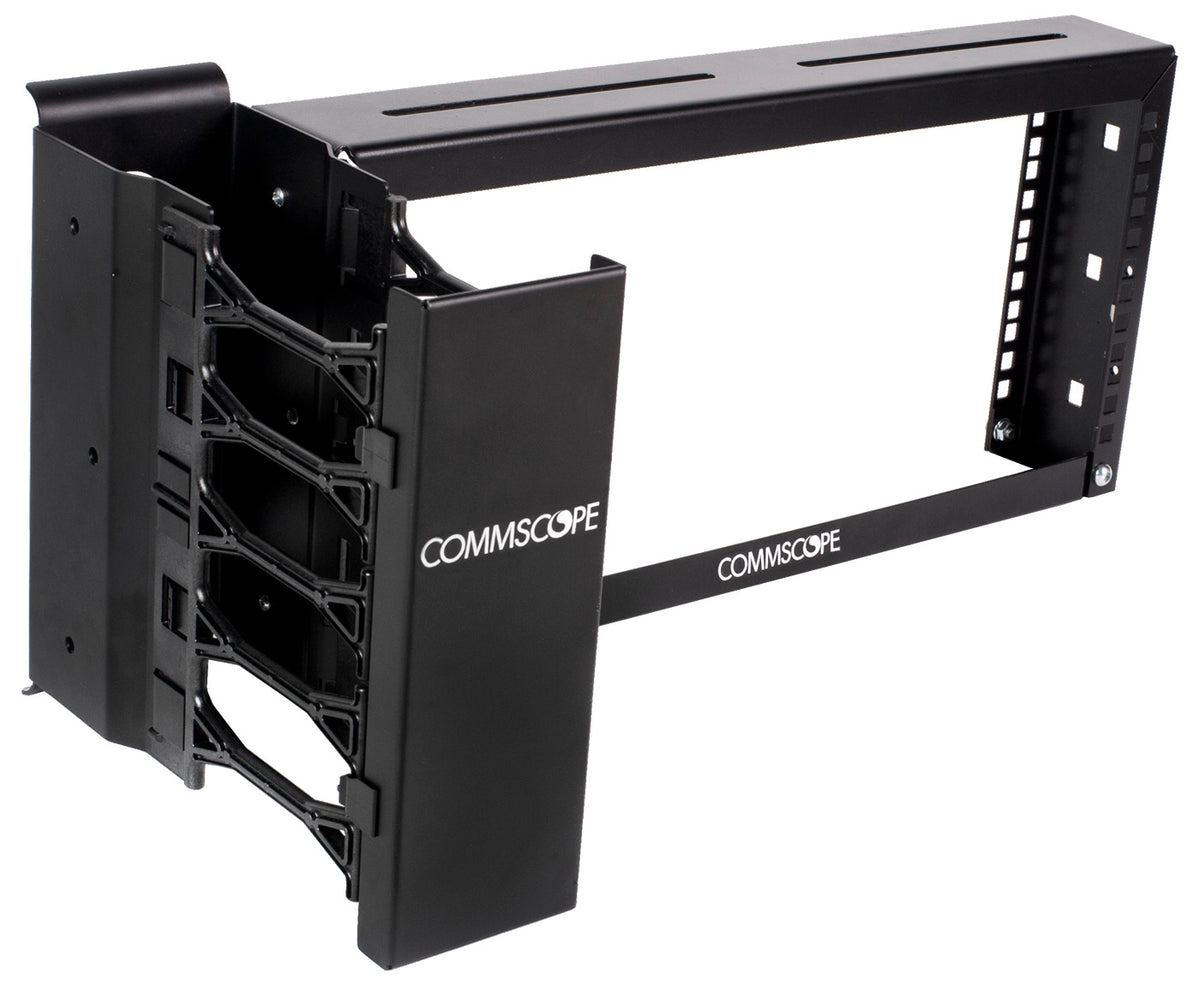

Commscope OVRHDRACKVCM | 3 in (76 mm) Channel x 9.4in (239 mm) H - 19 in (482.6 mm) Overhead Patch Panel Rack (4U) 3/8 Sq Punch, Black, with mini VCM
Regular price
$557.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope OVRHDRACKVCM | 3 in (76 mm) Channel x 9.4in (239 mm) H - ...
Regular price
$557.81
Unit price
Description
Description
Commscope OVRHDRACKVCM | 3 in (76 mm) Channel x 9.4in (239 mm) H - 19 in (482.6 mm) Overhead Patch Panel Rack (4U) 3/8 Sq Punch, Black, with mini VCM
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Mini-rack, overhead |
General Specifications
| Color | Black |
|---|---|
| Rack Type | EIA 19 in |
| Rack Units | 4 |
Dimensions
| Height | 238.76 mm / 9.4 in |
|---|---|
| Channel Width | 76.2 mm / 3 in |
| Width | 596.9 mm / 23.5 in |
| Depth | 264.16 mm / 10.4 in |
| Dimensional Standards | EIA-310-E |
Material Specifications
| Finish | Powder-coated, textured |
|---|---|
| Material Type | Steel |
Mechanical Specifications
| Static Load Rating | 27.2 kg / 59.966 lb |
|---|
Packaging and Weights
| Included | Instruction sheet / Mini vertical cable management, with cover / Six 5/16-18 hex nuts / Six 5/16-18 hex screws / Sixteen M6 cage nuts / Sixteen M6 mounting screws / Three 1/4-20 hex screws / Three flat washers / Two flat washers / Two ladder clamp brackets / Two mounting brackets |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Assembled |
| Weight, net | 3.64 kg / 8.025 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760158592 Drawing - DWG
- 760158592 Drawing - PDF
- 860 520 212 - Overhead Mini Rack Kit Installation on a Ladder Rack Instructions
- 860536978 - Overhead Mini Rack Mounting Kit Installation on a Wire Basket
- Statement of Compliance RoHS/REACH
- 760158592 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
