Brand: CommScope
|
SKU:
373-COMOM3-TBD-06/02

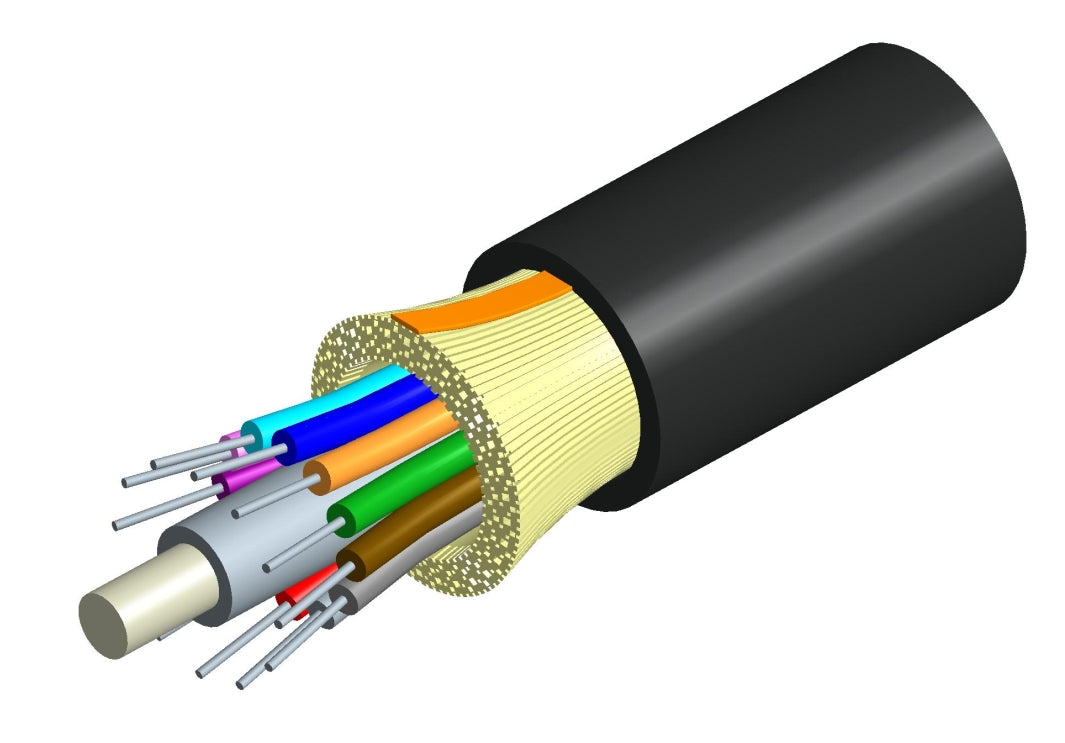

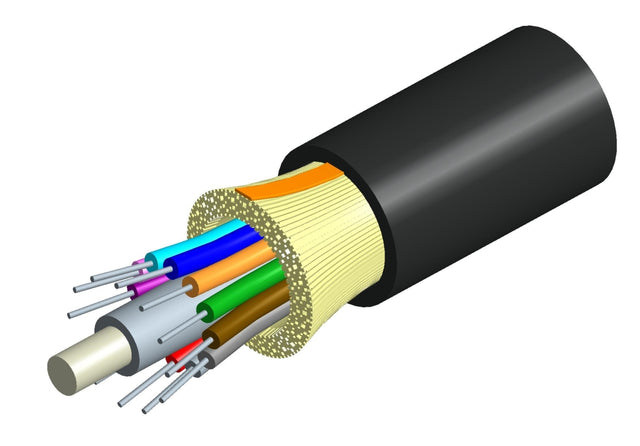

Commscope P-008-OD-CM-FSUBK/8W002/5L006 | TeraSPEED Indoor/Outdoor Plenum Distribution Cable, 8 fiber single-unit
Regular price
$3.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope P-008-OD-CM-FSUBK/8W002/5L006 | TeraSPEED Indoor/Outdoor ...
Regular price
$3.34
Unit price
Brand: CommScope
|
SKU:
373-COMOM3-TBD-06/02
Regular price
$3.34
Unit price
Shipping calculated at checkout.
Description
Description
Commscope P-008-OD-CM-FSUBK/8W002/5L006 | TeraSPEED Indoor/Outdoor Plenum Distribution Cable, 8 fiber single-unit
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 2 |
| Jacket Color | Black |
| Second Fiber Type | OM3, LazrSPEED 300 |
| Second Fiber Type, quantity | 6 |
| Total Fiber Count | 8 |
Dimensions
| Diameter Over Jacket | 5.8 mm / 0.228 in |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 87 mm / 3.425 in |
|---|---|
| Minimum Bend Radius, unloaded | 58 mm / 2.283 in |
| Tensile Load, long term, maximum | 400 N / 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N / 300.12 lbf |
| Compression | 22 N/mm / 125.623 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 5.88 N-m / 52.042 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m / 1640.42 ft |
Optical Specifications
| Fiber Type | Composite MM/SM / G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED / OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 / Telcordia GR-20 (water penetration) / Telcordia GR-409 |
| Environmental Space | Plenum |
| Flame Test Listing | NEC OFNP (ETL) and c(ETL) |
| Flame Test Method | NFPA 130 / NFPA 262 |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze Test Method | IEC 60794-1 F15 |
|---|---|
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -40 °C to +70 °C (-40 °F to +158 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 37 kg/km / 24.863 lb/kft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
