Commscope P002ZC8WF29YL | TeraSPEED 2.9 mm Plenum Zipcord Cable
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
370-COMOS2-ZIP2.9-02
Regular price
$1.45
Unit price
Description
Description
Commscope P002ZC8WF29YL | TeraSPEED 2.9 mm Plenum Zipcord Cable
Specifications
Specifications

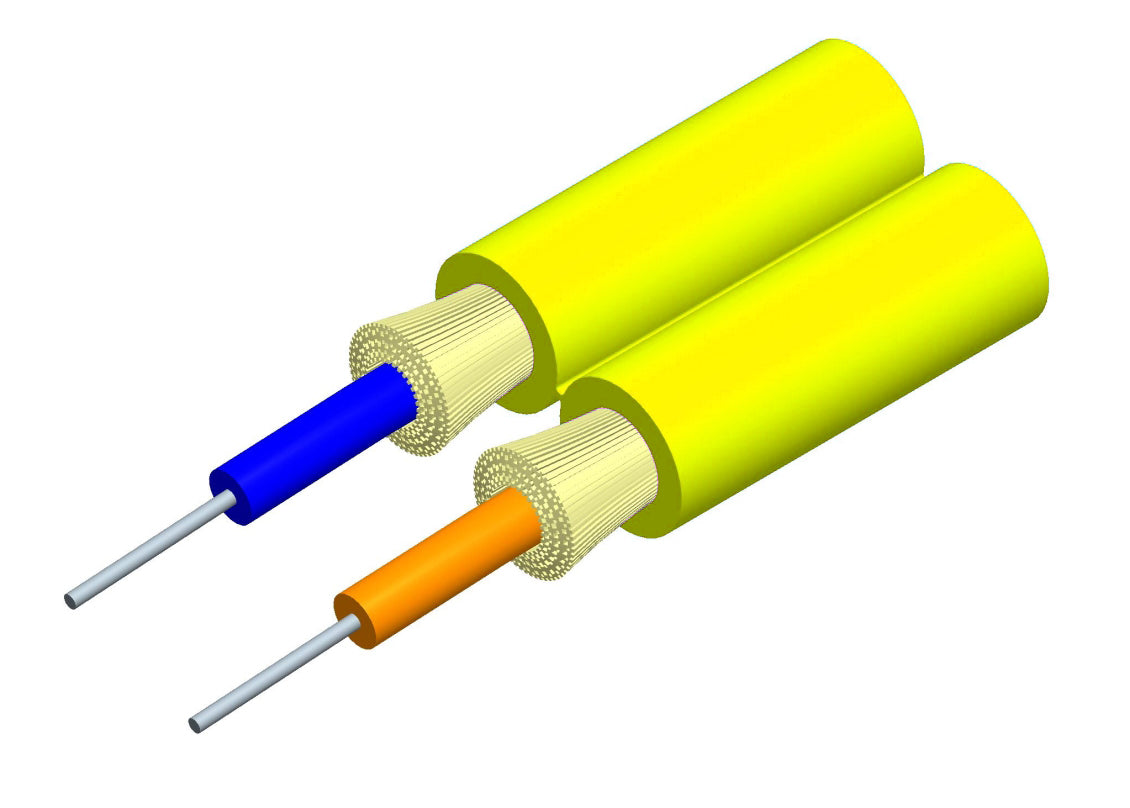

Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
General Specifications
| Cable Type | Cordage |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 2 |
| Jacket Color | Yellow |
| Subunit Type | Gel-free |
| Total Fiber Count | 2 |
Dimensions
| Height Over Jacket | 2.9 mm / 0.114 in |
|---|---|
| Width Over Jacket | 5.9 mm / 0.232 in |
Mechanical Specifications
| Minimum Bend Radius, loaded | 44 mm / 1.732 in |
|---|---|
| Minimum Bend Radius, unloaded | 23 mm / 0.906 in |
| Tensile Load, long term, maximum | 120 N / 26.977 lbf |
| Tensile Load, short term, maximum | 400 N / 89.924 lbf |
| Compression | 10 N/mm / 57.101 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 300 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 0.74 N-m / 6.55 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m / 1640.42 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
|---|---|
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 / Telcordia GR-409 |
| Environmental Space | Plenum |
| Flame Test Listing | NEC OFNP (ETL) and c(ETL) |
| Flame Test Method | NFPA 130 / NFPA 262 |
Environmental Test Specifications
| Heat Age | -20 °C to +85 °C (-4 °F to +185 °F) |
|---|---|
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -20 °C to +70 °C (-4 °F to +158 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -20 °C to +70 °C (-4 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 20 kg/km / 13.439 lb/kft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
