Brand: CommScope
|
SKU:
370-COMOM4-TBPD-24RD

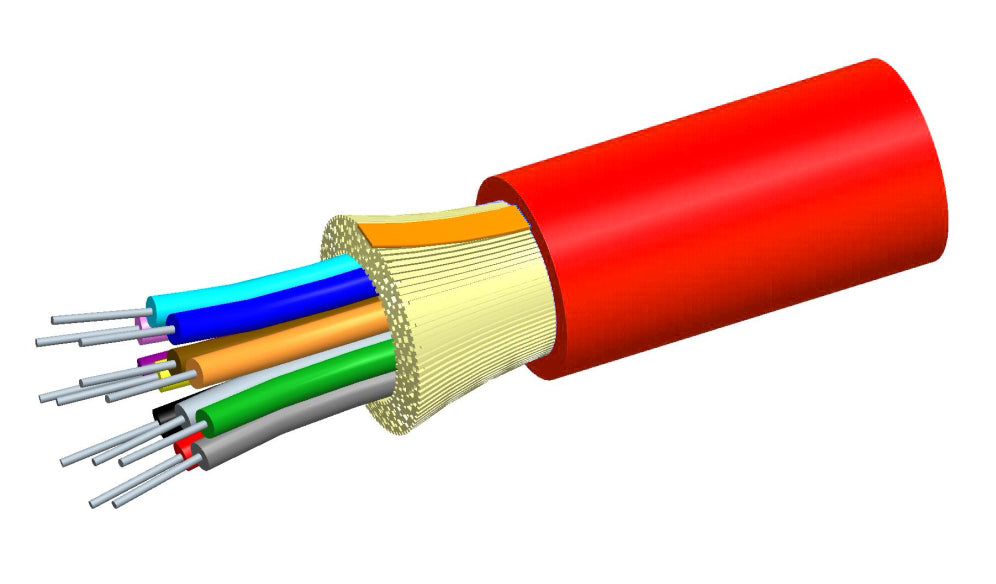

Commscope P024DS5KFSURD | LazrSPEED Plenum Distribution Cable, 24 fiber single-unit
Regular price
$8.98
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope P024DS5KFSURD | LazrSPEED Plenum Distribution Cable, 24 f...
Regular price
$8.98
Unit price
Brand: CommScope
|
SKU:
370-COMOM4-TBPD-24RD
Regular price
$8.98
Unit price
Description
Description
LazrSPEED Plenum Distribution Cable, 24 fiber single-unit
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 24 |
| Jacket Color | Red |
| Subunit Type | Gel-free |
| Total Fiber Count | 24 |
Dimensions
| Diameter Over Jacket | 8.5 mm | 0.335 in |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 127 mm | 5 in |
|---|---|
| Minimum Bend Radius, unloaded | 85 mm | 3.346 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.12 lbf |
| Compression | 10 N/mm | 57.101 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 5.88 N-m | 52.042 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m | 1640.42 ft |
Optical Specifications
| Fiber Type | OM4, LazrSPEED 550 | OM4, LazrSPEED 550 |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +70 °C (+32 °F to +158 °F) |
|---|---|
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 | Telcordia GR-409 |
| Environmental Space | Plenum |
