Brand: CommScope
|
SKU:
373-COMOS2-TBD-60
Commscope P060OD8WFMUBK | TeraSPEED Indoor/Outdoor Plenum Distribution Cable, 60 fiber multi-unit with 12 fiber subunits
Regular price
$17.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope P060OD8WFMUBK | TeraSPEED Indoor/Outdoor Plenum Distribut...
Regular price
$17.91
Unit price
Brand: CommScope
|
SKU:
373-COMOS2-TBD-60
Regular price
$17.91
Unit price
Shipping calculated at checkout.
Description
Description
Commscope P060OD8WFMUBK | TeraSPEED Indoor/Outdoor Plenum Distribution Cable, 60 fiber multi-unit with 12 fiber subunits
Specifications
Specifications

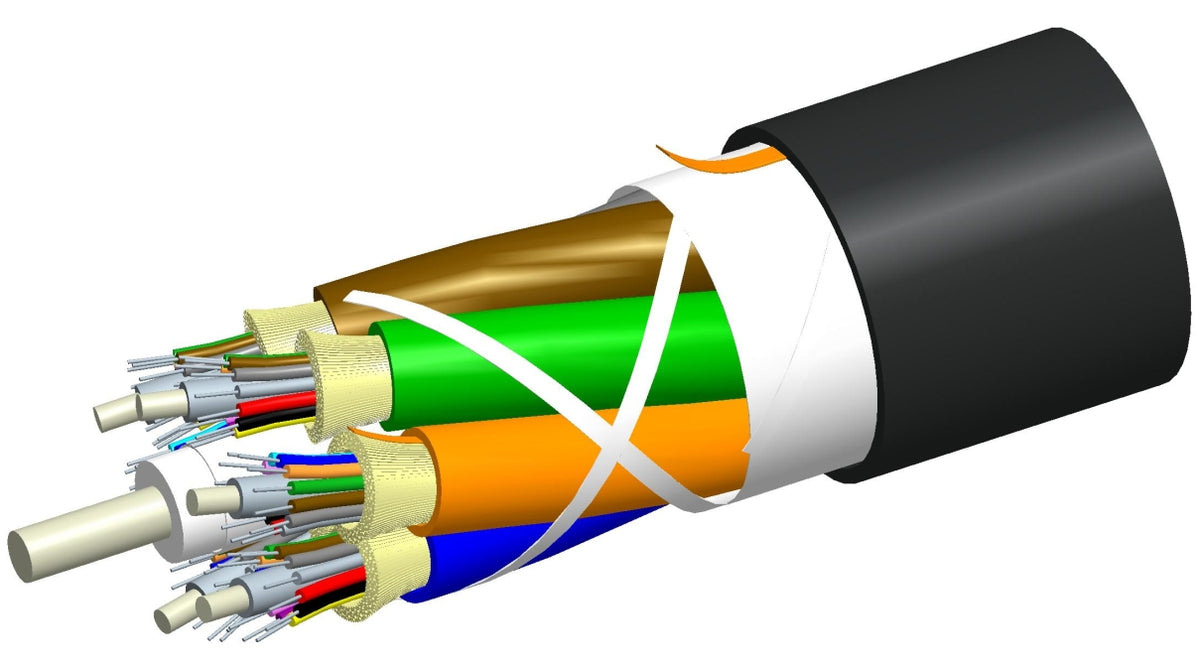

Representative Image
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 60 |
| Fibers per Subunit, quantity | 12 |
| Jacket Color | Black |
| Subunit Type | Gel-free |
| Subunit, quantity | 5 |
| Total Fiber Count | 60 |
Dimensions
| Buffer Tube/Subunit Diameter | 6.9 mm / 0.272 in |
|---|---|
| Diameter Over Jacket | 21.5 mm / 0.846 in |
Mechanical Specifications
| Minimum Bend Radius, loaded | 322 mm / 12.677 in |
|---|---|
| Minimum Bend Radius, unloaded | 215 mm / 8.465 in |
| Tensile Load, long term, maximum | 1335 N / 300.12 lbf |
| Tensile Load, short term, maximum | 4450 N / 1000.4 lbf |
| Compression | 22 N/mm / 125.623 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 5.88 N-m / 52.042 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 318 m / 1043.307 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1 , TeraSPEED / G.652.D and G.657.A1, TeraSPEED |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 / Telcordia GR-20 (water penetration) / Telcordia GR-409 |
| Environmental Space | Plenum |
| Flame Test Listing | NEC OFNP (ETL) and c(ETL) |
| Flame Test Method | NFPA 130 / NFPA 262 |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze Test Method | IEC 60794-1 F15 |
|---|---|
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -40 °C to +70 °C (-40 °F to +158 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 427 kg/km / 286.931 lb/kft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
