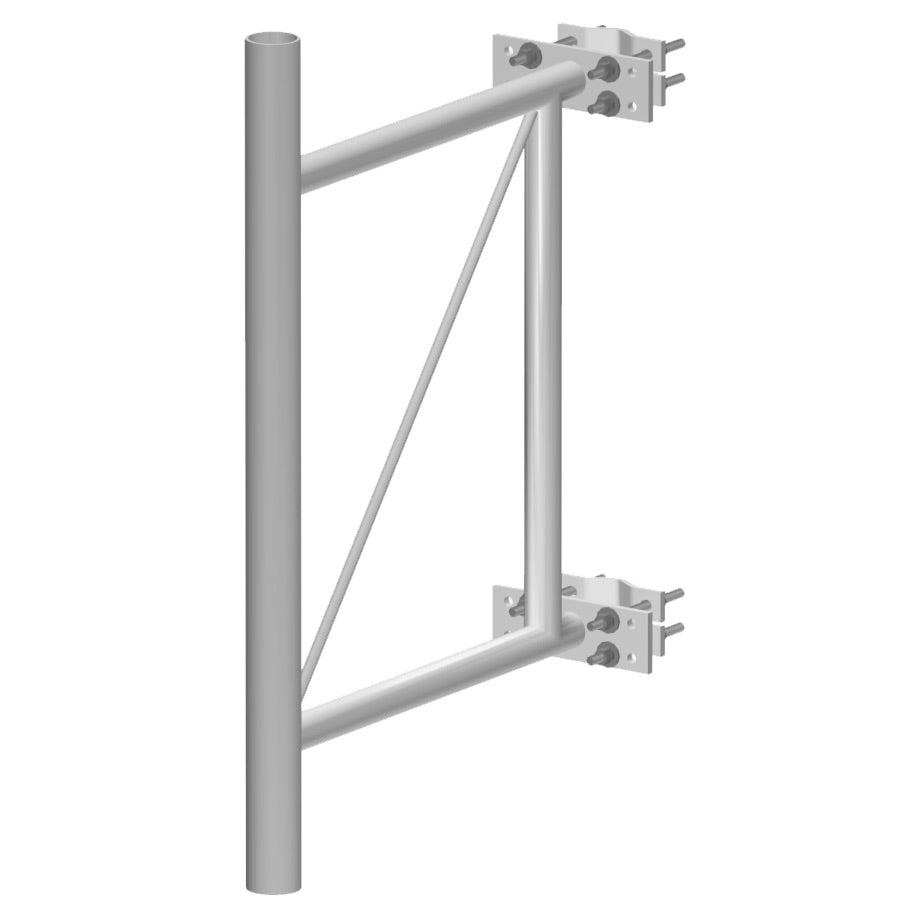

Commscope PB-G3T-4 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 4 in to 8 in OD legs
Regular price
$1,073.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PB-G3T-4 | Tapered Pipe Frame Stand-Off Bracket, 36 in, f...
Regular price
$1,073.37
Unit price
Description
Description
Commscope PB-G3T-4 | Tapered Pipe Frame Stand-Off Bracket, 36 in, for 4 in to 8 in OD legs
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Stand-off mount |
|---|
General Specifications
| Mounting | Legs, 101.6–203.2 mm (4–8 in) OD |
|---|---|
| Note | Four 72 in x 8 in panel antennas per sector |
| Tower Taper | Tapered |
Dimensions
| Height | 1447.8 mm / 57 in |
|---|---|
| Width | 254 mm / 10 in |
| Length | 838.2 mm / 33 in |
| Mounting Diameter, maximum | 203.2 mm / 8 in |
| Mounting Diameter, minimum | 101.6 mm / 4 in |
| Stand-off Distance | 914.4 mm / 36 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL / 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Environmental Specifications
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
|---|
Packaging and Weights
| Included | Clamps / Stand-off |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 62.6 kg / 138.009 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
