Brand: CommScope
|
SKU:
10094332
Commscope PFC-304O12F | Powered Fiber Cable, OM3, 4 Fibers, Outdoor, 12AWG Conductor, Printed in FEET
Regular price
$2.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PFC-304O12F | Powered Fiber Cable, OM3, 4 Fibers, Outdoor...
Regular price
$2.88
Unit price
Description
Description

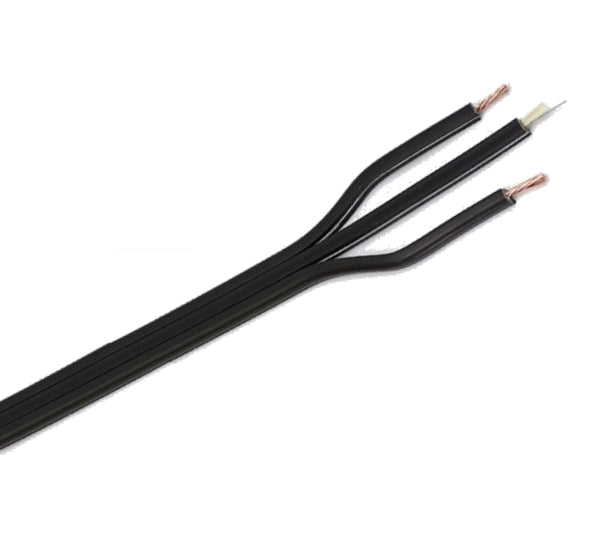

Commscope PFC-304O12F | Powered Fiber Cable, OM3, 4 Fibers, Outdoor, 12AWG Conductor, Printed in FEET
Features and Benefits
- Easy peel, stranded conductors for maximum cable flexibility and rapid access
- Polarization indentation along one side of the cable for polarity identification
- No special tools or mounting hardware required - usage of a standard “FTTH” pressure clamp for aerial installation
- Easy split of cable into three separate sections for separate routing in closures, as needed for installation
- Polyethylene jacket for outdoor duct or direct buried applications
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Hybrid cable, fiber and power |
| Ordering Note | Minimum order quanity is 1640 feet |
General Specifications
| Cable Type | Stranded outdoor |
|---|---|
| Fiber Short Description | PFC-O12 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Total Fiber Count | 4 |
Dimensions
| Height Over Jacket | 4.318 mm / 0.17 in |
|---|---|
| Width Over Jacket | 11.43 mm / 0.45 in |
| Conductor Gauge | 12 AWG |
Mechanical Specifications
| Minimum Bend Radius, loaded | 50.8 mm / 2 in |
|---|---|
| Minimum Bend Radius, unloaded | 30.48 mm / 1.2 in |
| Tensile Load, long term, maximum | 133.447 N / 30 lbf |
| Tensile Load, short term, maximum | 440.374 N / 99 lbf |
| Vertical Rise, maximum | 122.011 m / 400.3 ft |
Optical Specifications
| Fiber Type | OM3, bend insensitive |
|---|
Environmental Specifications
| Installation temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | Telcordia GR-20-CORE Issue 4 |
| Environmental Space | Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 109.975 kg/km / 73.9 lb/kft |
|---|
