Brand: CommScope
|
SKU:
373-COMOS2-PFC16-02

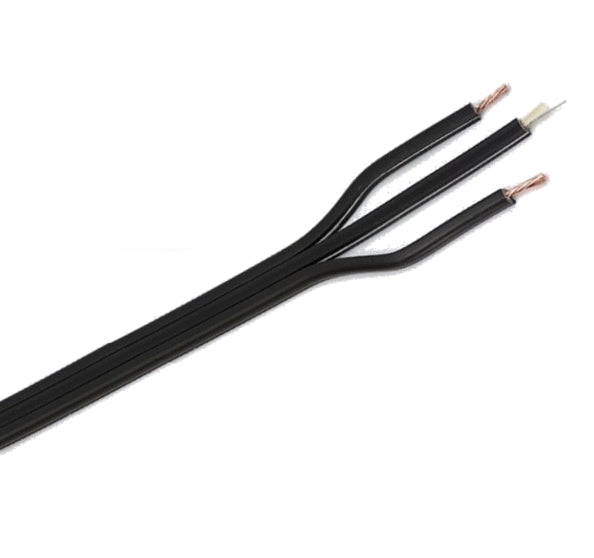

Commscope PFC-S02L16 | Powered Fiber Cable, OS2, 2 Fibers, Indoor/Outdoor, 16AWG Conductor, meter
Regular price
$9.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PFC-S02L16 | Powered Fiber Cable, OS2, 2 Fibers, Indoor/O...
Regular price
$9.13
Unit price
Brand: CommScope
|
SKU:
373-COMOS2-PFC16-02
Regular price
$9.13
Unit price
Shipping calculated at checkout.
Description
Description
Commscope PFC-S02L16 | Powered Fiber Cable, OS2, 2 Fibers, Indoor/Outdoor, 16AWG Conductor, meter
Features and Benefits
- Easy peel, stranded conductors for maximum cable flexibility and rapid access
- Polarization indentation along one side of the cable for polarity identification
- No special tools or mounting hardware required - usage of a standard “FTTH” pressure clamp for aerial installation
- Easy split of cable into three separate sections for separate routing in closures, as needed for installation
- Riser/LSZH jacket for indoor/outdoor applications
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Hybrid cable, fiber and power |
| Ordering Note | Minimum order quanity is 500 meter |
General Specifications
| Cable Type | Stranded indoor/outdoor |
|---|---|
| Fiber Short Description | PFC-L16 |
| Jacket Color | Black |
| Total Fiber Count | 2 |
Dimensions
| Height Over Jacket | 4.318 mm / 0.17 in |
|---|---|
| Width Over Jacket | 11.43 mm / 0.45 in |
| Conductor Gauge | 16 AWG |
Mechanical Specifications
| Minimum Bend Radius, loaded | 88.9 mm / 3.5 in |
|---|---|
| Minimum Bend Radius, unloaded | 45.72 mm / 1.8 in |
| Tensile Load, long term, maximum | 133.447 N / 30 lbf |
| Tensile Load, short term, maximum | 440.374 N / 99 lbf |
| Vertical Rise, maximum | 122.011 m / 400.3 ft |
Optical Specifications
| Fiber Type | G.657.A2 / OS2 |
|---|
Environmental Specifications
| Installation temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | Telcordia GR-20-CORE Issue 4 |
| Environmental Space | Low Smoke Zero Halogen (LSZH) / Riser |
| Flame Test Method | IEC 60332-1-2 / IEC 60754-2 / IEC 61034-2 / NFPA 130 / UL 1666 / UL 444 |
| Jacket UV Resistance | UV stabilized |
Packaging and Weights
| Cable weight | 69.944 kg/km / 47 lb/kft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|
Documents and Downloads
Documents and Downloads
- PFCS Cable Calculator
- Indoor Outdoor PFC Intertek Test Certificate
- EN50575 DoP EuroClass Dca s1a d1 a1 (Danish)
- EN50575 DoP EuroClass Dca s1a d1 a1 (English)
- EN50575 DoP EuroClass Dca s1a d1 a1 (French)
- EN50575 DoP EuroClass Dca s1a d1 a1 (German)
- EN50575 DoP EuroClass Dca s1a d1 a1 (Italian)
- EN50575 DoP EuroClass Dca s1a d1 a1 (Spanish)
