Commscope PFC-S02L16F | Powered Fiber Cable, OS2, 2 Fibers, Indoor/...
Regular price
$3.00
Unit price
Description
Description

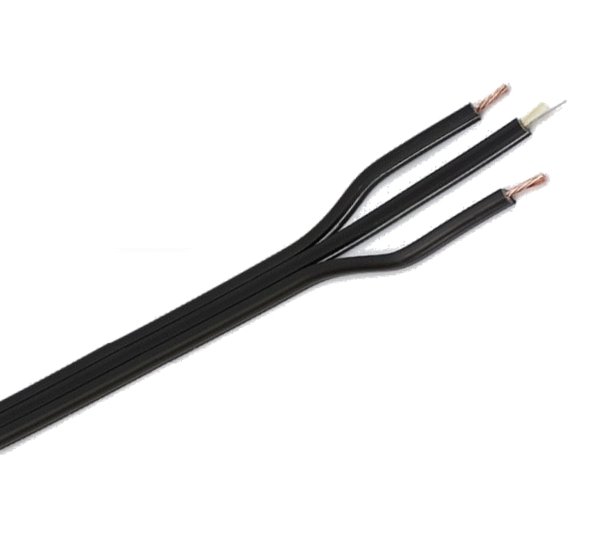

Powered Fiber Cable, OS2, 2 Fibers, Indoor/Outdoor, 16AWG Conductor, feet
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Hybrid cable, fiber and power |
General Specifications
| Cable Type | Stranded indoor/outdoor |
|---|---|
| Fiber Short Description | PFC-L16 |
| Jacket Color | Black |
| Total Fiber Count | 2 |
Dimensions
| Height Over Jacket | 4.318 mm | 0.17 in |
|---|---|
| Width Over Jacket | 11.43 mm | 0.45 in |
| Conductor Gauge | 16 AWG |
Mechanical Specifications
| Minimum Bend Radius, loaded | 88.9 mm | 3.5 in |
|---|---|
| Minimum Bend Radius, unloaded | 45.72 mm | 1.8 in |
| Tensile Load, long term, maximum | 133.447 N | 30 lbf |
| Tensile Load, short term, maximum | 440.374 N | 99 lbf |
| Vertical Rise, maximum | 122.011 m | 400.3 ft |
Optical Specifications
| Fiber Type | G.657.A2 | OS2 |
|---|
Environmental Specifications
| Installation temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | Telcordia GR-20-CORE Issue 4 |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
Packaging and Weights
| Cable weight | 69.944 kg/km | 47 lb/kft |
|---|
