Brand: CommScope | SKU: 372-COMPFC-OS2-12-04

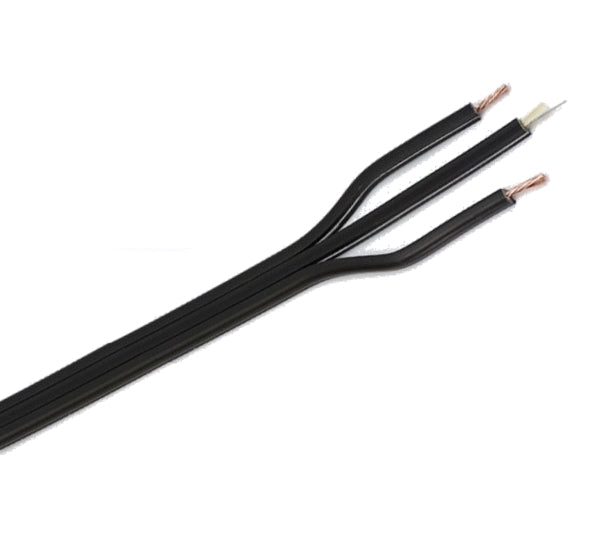

Commscope PFC-S04O12 | Powered Fiber Cable, OS2, 4 Fibers, Outdoor, 12AWG Conductor

$5.04

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope PFC-S04O12 | Powered Fiber Cable, OS2, 4 Fibers, Outdoor, 12AWG Conductor

Features and Benefits

Easy peel, stranded conductors for maximum cable flexibility and rapid access
Polarization indentation along one side of the cable for polarity identification
No special tools or mounting hardware required - usage of a standard “FTTH” pressure clamp for aerial installation
Easy split of cable into three separate sections for separate routing in closures, as needed for installation
Polyethylene jacket for outdoor duct or direct buried applications

Specifications

Outline Drawing

Click on image to enlarge.

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Product Type	Hybrid cable, fiber and power
Ordering Note	Minimum order quanity is 500 meter

General Specifications

Cable Type	Stranded outdoor
Fiber Short Description	PFC-O12
Jacket Color	Black
Total Fiber Count	4

Dimensions

Height Over Jacket	4.318 mm / 0.17 in
Width Over Jacket	11.43 mm / 0.45 in
Conductor Gauge	12 AWG

Mechanical Specifications

Minimum Bend Radius, loaded	50.8 mm / 2 in
Minimum Bend Radius, unloaded	30.48 mm / 1.2 in
Tensile Load, long term, maximum	133.447 N / 30 lbf
Tensile Load, short term, maximum	440.374 N / 99 lbf
Vertical Rise, maximum	122.011 m / 400.3 ft

Optical Specifications

Fiber Type	G.657.A2 / OS2

Environmental Specifications

Installation temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	Telcordia GR-20-CORE Issue 4
Environmental Space	Outdoor
Jacket UV Resistance	UV stabilized

Packaging and Weights

Cable weight	109.975 kg/km / 73.9 lb/kft

Regulatory Compliance/Certifications

ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
