Brand: CommScope
|
SKU:
10259919

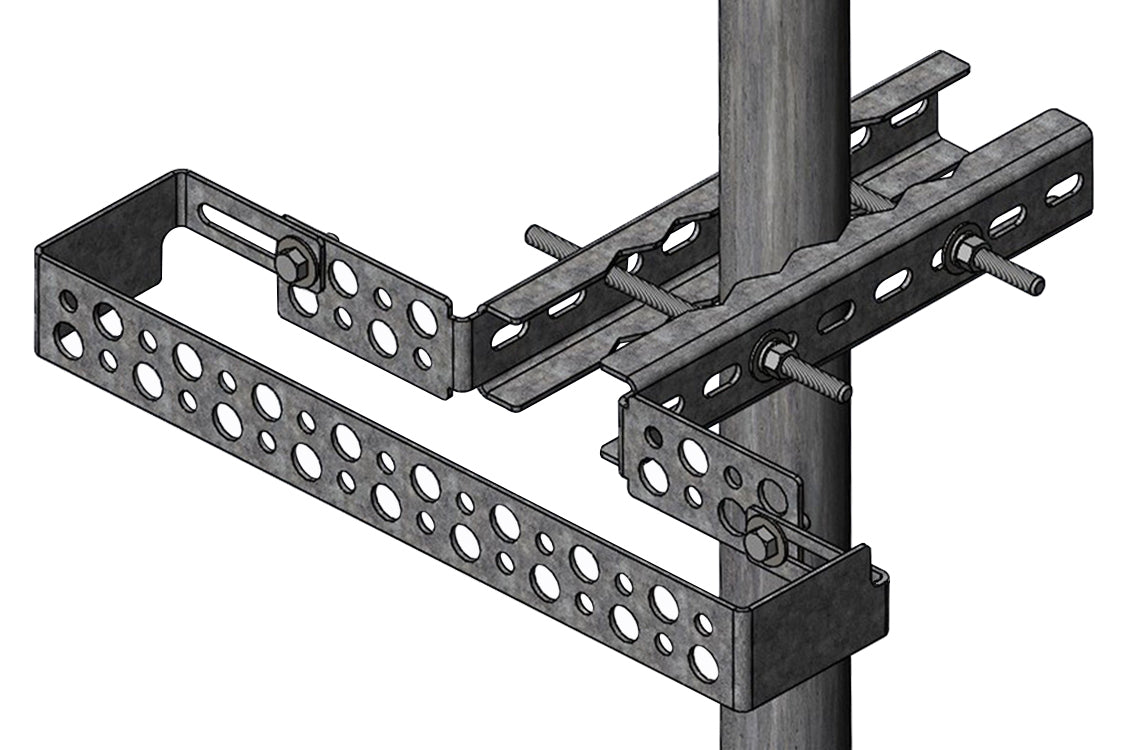

CommScope PG-CS23 | PIM-Guard Antenna and RRU Cable Support Bracket with 23 ports for stackable hangers (up to 3 per port).
Regular price
$114.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope PG-CS23 | PIM-Guard Antenna and RRU Cable Support Bracket...
Regular price
$114.72
Unit price
Description
Description
CommScope PG-CS23 | PIM-Guard Antenna and RRU Cable Support Bracket with 23 ports for stackable hangers (up to 3 per port).
Specifications
Specifications
CommScope - PG-CS23 - Product Categories
- Structural Support, Tools & Accessories
- Structural Support Equipment
- Site Components & Hardware
CommScope - PG-CS23 - Product Classification
| Product Type | Support bracket |
|---|---|
| Product Brand | PIM-Guard |
CommScope - PG-CS23 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | PIM-Guard Antenna and RRU Cable Support Bracket with 23 ports for stackable hangers (up to 3 per port). Install with torque wrench set at 10 to 15 ft-lb to meet carrier PIM requirements. For patents, see www.cs-pat.com |
| Model Number | PG-CS23 |
| Cable Runs, quantity | 23 |
| Hole, quantity | 23 |
| Mounting | Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD |
CommScope - PG-CS23 - Additional Information
| Dimensions | - |
|---|---|
| Height | 55.88 mm | 2.2 in |
| Width | 457.2 mm | 18 in |
| Length | 419.1 mm | 16.5 in |
| Mounting Diameter, maximum | 60.96 mm | 2.4 in |
| Mounting Diameter, minimum | 114.3 mm | 4.5 in |
| Hole Size | 3/4 in | 7/16 in |
| Material Specifications | - |
| Material Type | Hot dip galvanized steel |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Weight, net | 5.1 kg | 11.244 lb |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
