Brand: CommScope
|
SKU:
335543

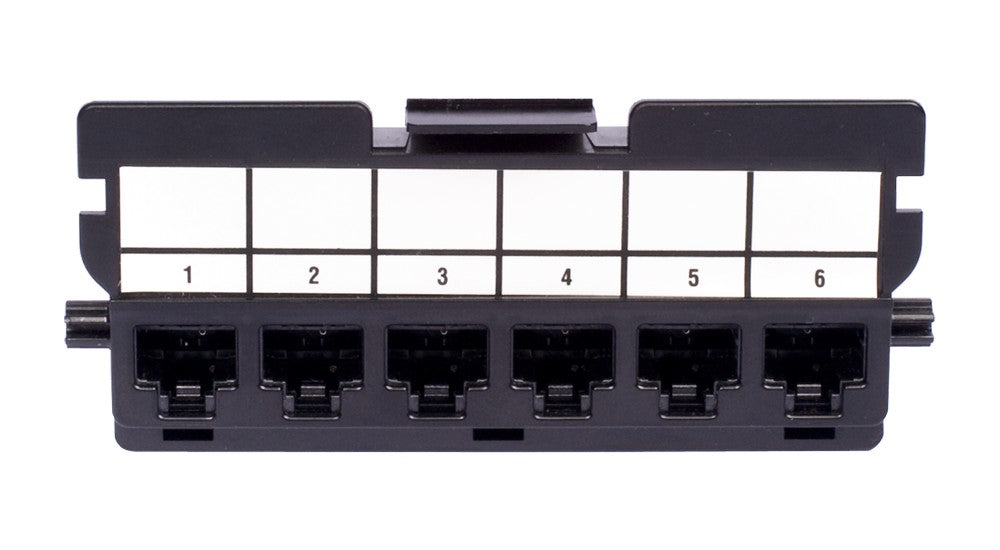

Commscope PM GS3-DM | GigaSPEED XL PATCHMAX GS3 Category 6 U/UTP Distribution Module
Regular price
$86.60
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PM GS3-DM | GigaSPEED XL PATCHMAX GS3 Category 6 U/UTP Di...
Regular price
$86.60
Unit price
Brand: CommScope
|
SKU:
335543
Regular price
$86.60
Unit price
Description
Description
Commscope PM GS3-DM | GigaSPEED XL PATCHMAX GS3 Category 6 U/UTP Distribution Module
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Module |
| Product Brand | GigaSPEED XL / PATCHMAX |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid / Stranded |
| Intelligence Type | Passive |
| Modules, quantity | 1 |
| Termination Type | IDC |
| Total Ports, quantity | 6 |
| Wiring | T568A / T568B |
Dimensions
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
|---|---|
| Compatible Diameter Over Dielectric, minimum | 0.762 mm / 0.03 in |
| Compatible Conductor Gauge, solid | 22 AWG / 24 AWG |
| Compatible Conductor Gauge, stranded | 22 AWG / 24 AWG |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C / 1.5 A @ 68 °F |
|---|---|
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Material Specifications
| Contact Plating Material | Precious metals |
|---|---|
| Material Type | High-impact, flame retardant, thermoplastic |
| Termination Contact Plating | Nickel |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|---|
| Plug Insertion Life, test plug | IEC 60603-7 compliant plug |
| Plug Retention Force, minimum | 133.447 N / 30 lbf |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
