Commscope PMGS3-3U | GigaSPEED XL PATCHMAX GS3 Category 6 U/UTP 3U ...
Regular price
$461.54
Unit price
Brand: CommScope
|
SKU:
259491
Regular price
$461.54
Unit price
Description
Description

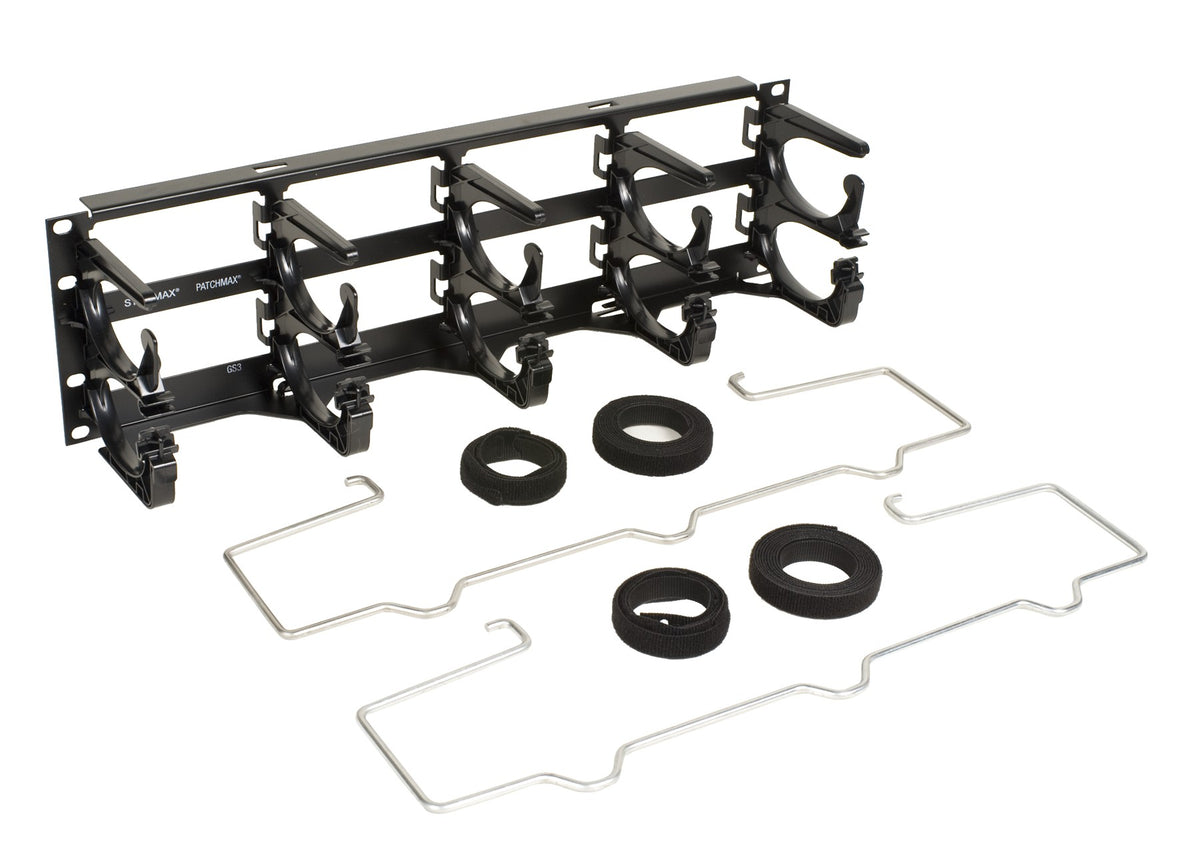

Commscope PMGS3-3U | GigaSPEED XL PATCHMAX GS3 Category 6 U/UTP 3U Panel Kit
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | GigaSPEED XL / PATCHMAX |
General Specifications
| ANSI/TIA Category | 6 |
|---|---|
| Cable Type | Unshielded |
| Color | Black |
| Intelligence Type | Passive |
| Rack Type | EIA 19 in |
| Rack Units | 3 |
Dimensions
| Height | 134.37 mm / 5.29 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth, with cable management | 206.5 mm / 8.13 in |
Electrical Specifications
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
|---|
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
