Brand: CommScope
|
SKU:
1018738

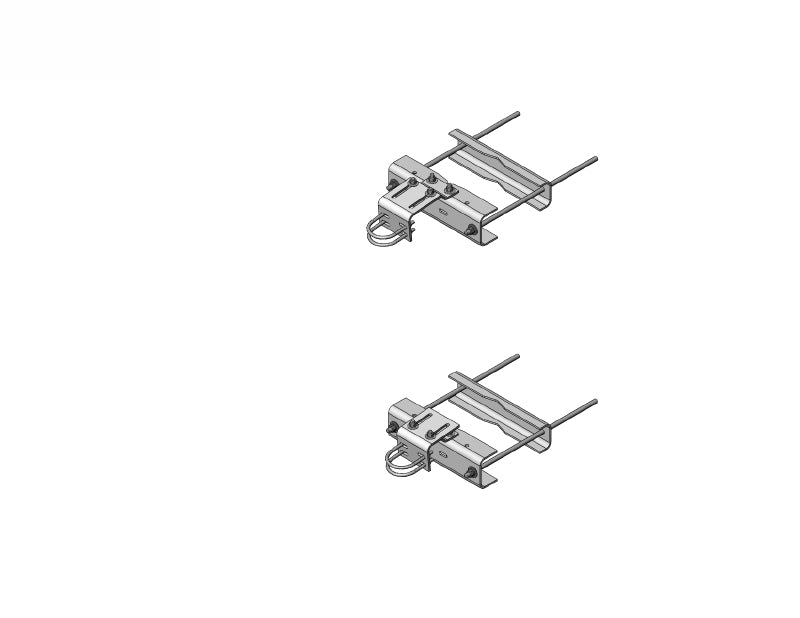

Commscope PML-SU4-B | Large Leg Universal Sliding Pipe Mount Kit for 4-1/2 in OD pipe
Regular price
$799.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope PML-SU4-B | Large Leg Universal Sliding Pipe Mount Kit fo...
Regular price
$799.23
Unit price
Description
Description
Commscope PML-SU4-B | Large Leg Universal Sliding Pipe Mount Kit for 4-1/2 in OD pipe
Specifications
Specifications
Product Classification
| Product Type | Pipe mount |
|---|
General Specifications
| Mounting | Angle 60°, 406.4 mm (16 in) / Angle 90°, 304.8 mm (12 in) / Straight or tapered legs up to 406.4 mm (16 in) OD |
|---|---|
| Note | One 8 ft microwave antenna with stiff arm |
| Pipe, quantity | 0 |
| Tower Taper | Non-tapered / Tapered |
Dimensions
| Height | 127 mm / 5 in |
|---|---|
| Width | 304.8 mm / 12 in |
| Length | 304.8 mm / 12 in |
| Mounting Diameter, maximum | 406.4 mm / 16 in |
| Mounting Diameter, minimum | 0 mm / 0 in |
| Pipe Outer Diameter | 114.3 mm / 4.5 in |
| Stand-off Distance | 203.2 mm / 8 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
|---|---|
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Sliding pipe mount brackets / Universal saddle mount |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 36.8 kg / 81.13 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
