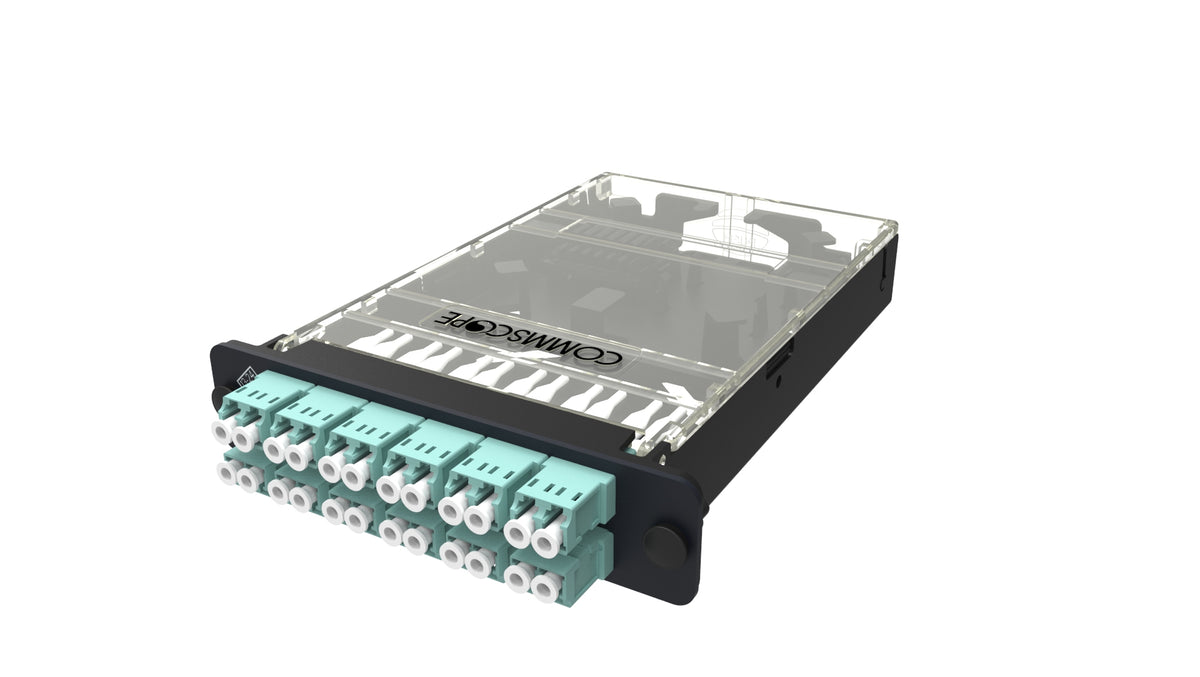

Commscope PNL-CS-24LCX-PT | LazrSPEED Splicing cassette, 24LC , 900?m
Regular price
$702.10
Unit price
Brand: CommScope
|
SKU:
937912
Regular price
$702.10
Unit price
Description
Description
Commscope PNL-CS-24LCX-PT | LazrSPEED Splicing cassette, 24LC , 900?m
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber cassette with pigtails |
| Product Brand | LazrSPEED |
General Specifications
| Adapter Color | Aqua |
|---|---|
| Interface, front | LC |
| Interface Feature, front | Standard |
| Total Fibers, quantity | 24 |
| Total Ports, quantity, front | 12 |
Dimensions
| Height | 28.956 mm / 1.14 in |
|---|---|
| Width | 104.648 mm / 4.12 in |
| Depth | 165.354 mm / 6.51 in |
| Pigtail Length | 1.5 m / 4.921 ft |
Optical Specifications
| Fiber Type | OM4, LazrSPEED 550 |
|---|---|
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum | 25 dB |
Environmental Specifications
| Safety Standard | UL |
|---|
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 760221697 Drawing - DWG
- 760221697 Drawing - PDF
- 860634954 -SD Splicing Cassette Instructions
- Statement of Compliance RoHS/REACH
- 760221697 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
